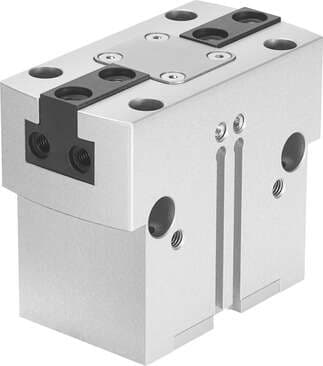

560224 Festo Pneumatic Grippers

Product Details

• Max. interchangeability
  ≤ 0.2 mm
• Pneumatic gripper repetition accuracy
  ≤ 0.05 mm
• Mounting position
  Any
• Position sensing
  For proximity sensor
• Max. operating frequency of pneumatic gripper
  ≤ 2 Hz
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Maximum torque on gripper jaw, My static
  120 Nm
• Product weight
  1832 g
• Size
  50
• Max. gripper jaw backlash Sz
  ≤ 0.02 mm
• Gripping force backup
  During closing
• Operating pressure for sealing air
  0 bar ... 0.5 bar
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Ambient temperature
  5 °C ... 60 °C
• Maximum torque on gripper jaw, Mx static
  120 Nm
• Pneumatic connection
  G1/8
• Stroke per gripper jaw
  12 mm
• Rotational symmetry
  ≤ 0.2 mm
• Design
  Inclined plane Positively driven motion sequence
• Min. opening time at 6 bar
  151 ms
Degree of protection
IP40
Maximum force on gripper jaw Fz, static
3200 N
Max. mass per external gripper finger
640 g
Housing material
Aluminum Anodized
Type code
HGPT
Mode of operation
Double-acting
Symbol
00991895
Relubrication interval for guidance elements
5 MioCyc
Note on materials
Free of copper and PTFE RoHS-compliant
Max. gripper jaw angular play ax, ay
≤ 0.1 deg
Number of gripper jaws
2
Gripper function
Parallel
Operating pressure
4 bar ... 8 bar
Min. closing time at 6 bar
77 ms
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Mass moment of inertia
29.423 kgcm²
Maximum torque on gripper jaw, Mz static
100 Nm
Type of mounting
Optionally: With internal thread and dowel pin
Cover cap material
High-alloy stainless steel
Sealing air pneumatic connection
M5
Gripper jaw material
Steel Hardened
