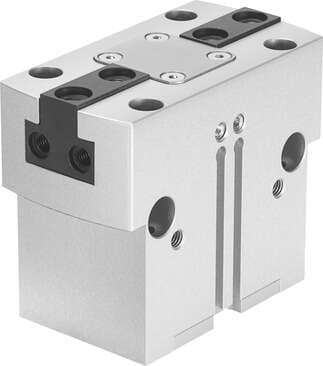

560214 Festo Pneumatic Grippers

Product Details

• Size
  35
• Rotational symmetry
  ≤ 0.2 mm
• Mode of operation
  Double-acting
• Operating pressure for sealing air
  0 bar ... 0.5 bar
• Min. opening time at 6 bar
  35 ms
• Ambient temperature
  5 °C ... 60 °C
• Maximum torque on gripper jaw, Mx static
  80 Nm
• Max. mass per external gripper finger
  180 g
• Stroke per gripper jaw
  4 mm
• Max. gripper jaw backlash Sz
  ≤ 0.02 mm
• Gripper function
  Parallel
• Design
  Inclined plane Positively driven motion sequence
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Mass moment of inertia
  3.974 kgcm²
• Relubrication interval for guidance elements
  5 MioCyc
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Housing material
  Aluminum Anodized
• Number of gripper jaws
  2
• Max. gripper jaw angular play ax, ay
  ≤ 0.1 deg
• Pneumatic gripper repetition accuracy
  ≤ 0.05 mm
Gripping force backup
On opening
Operating pressure
4 bar ... 8 bar
Min. closing time at 6 bar
115 ms
Degree of protection
IP40
Maximum torque on gripper jaw, My static
60 Nm
Type of mounting
Optionally: With internal thread and dowel pin
Cover cap material
High-alloy stainless steel
Position sensing
For proximity sensor
Max. operating frequency of pneumatic gripper
≤ 3 Hz
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Max. interchangeability
≤ 0.2 mm
Type code
HGPT
Mounting position
Any
Symbol
00995947
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Maximum force on gripper jaw Fz, static
1800 N
Maximum torque on gripper jaw, Mz static
50 Nm
Sealing air pneumatic connection
M5
Product weight
567 g
Pneumatic connection
M5
Gripper jaw material
Steel Hardened
