Powermatic Associates Logo

557669 Festo Pneumatic Valves Accessories

557669 on Powermatic Associates
Festo

Part#:557669

Alt. Part#:VABM-C8-12E-G14-20-M1

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Product description

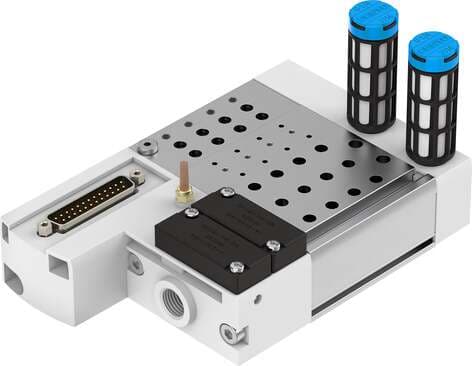

manifold rail VABM-C8-12E-G14-20-M1 Grid dimension: 12 mm, Max. number of valve positions: 20, Corrosion resistance classification CRC: 0 - No corrosion stress, Max. tightening torque, valve mounting: 0,6 Nm, Max. tightening torque, wall mounting: 5 Nm

Product Details

  • Type code
    VABM
  • Max. tightening torque for wall mounting
    5 Nm
  • Max. no. of valve positions
    20
  • Pneumatic connection 5
    G1/4
  • Corrosion resistance class (CRC)
    0 - No corrosion stress
  • Pneumatic connection 3
    G1/4
  • Width dimension
    12 mm
  • Max. tightening torque for valve mounting
    0.6 Nm
  • Pneumatic connection 1
    G1/4
  • Manifold rail material
    Wrought aluminum alloy
  • Product weight
    1296 g
  • Note on materials
    Free of copper and PTFE RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

557669 Related Documents

557669 DataSheet.pdf
