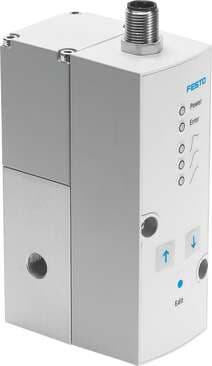

554040 Festo Proportional Valves

Product Details

• Exhaust nominal width
  4.5 mm
• Sealing principle
  Soft
• Reverse polarity protection
  for all electrical connections
• Display type
  LED
• Max. electrical power consumption
  7 W
• Residual ripple
  10 %
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Switching output
  PNP
• Temperature of medium
  10 °C ... 50 °C
• Ambient temperature
  0 °C ... 60 °C
• Repetition accuracy FS
  0.5 %
• Pneumatic connection 3
  G1/8
• Nominal width pressurization
  6 mm
• Mounting position
  Any
• Safety instructions
  VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
• Type of control
  Pilot-controlled
• DC operating voltage range
  21.6 V ... 26.4 V
• Symbol
  00995303
• Inlet pressure 1
  0 bar ... 11 bar
Max. current consumption
300 mA
Analog output signal range
0 - 10 V
CE marking (see declaration of conformity)
As per EU EMC directive
Product weight
400 g
Linearity error FS
1 %
Type of mounting
Optionally: With accessories
KC characters
KC EMC
Actuation type
Electrical
Design
Pilot-controlled diaphragm regulator
Valve function
3-way proportional pressure control valve
Max. pressure hysteresis
0.05 bar
Analog input signal range
0 - 10 V
Information on operating and pilot media
Operation with oil lubrication not possible
Temperature coefficient
0.04 %/K
Pneumatic connection 2
G1/8
Type code
VPPM
Short-circuit protection
For all electrical connections
Reset method
Mechanical spring
Pressure regulation range
0.1 bar ... 10 bar
Standard nominal flow rate
1400 l/min
Duty cycle
100%
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Degree of protection
IP65
Pneumatic connection 1
G1/8
Note on materials
RoHS-compliant
Electrical connection
8-pin Plug
Housing material
Wrought aluminum alloy Anodized
