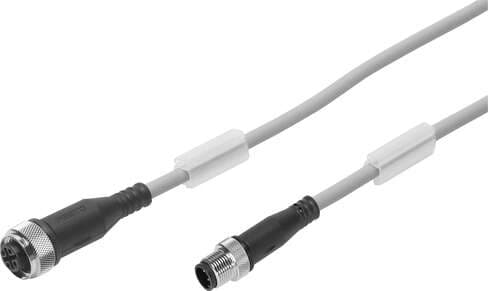

554036 Festo Cable Assemblies

Product Details

• Cable designation
  With 2x label holders
• Electrical connection 1, function
  Field device end
• Electrical connection 2, design
  Round
• Electrical connection 2, cable outlet
  Straight
• Electrical connection 2, type of mounting
  Screw-type lock
• Surge resistance
  0.8 kV
• Bending radius, fixed cable installation
  14 mm
• Cable design
  4 x 0.25 mm²
• Ambient temperature
  -25 °C ... 70 °C
• Contamination level
  3
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Material of pin contacts
  Copper alloy, gold-plated
• Conforms to standard
  Wire colors and connection numbers as per EN 60947-5-2 EN 61076-2-104
• Electrical connection 1, design
  Round
• Electrical connection 1, connection technology
  M12x1 A-coded as per EN 61076-2-101
• Electrical connection 1, type of mounting
  Screw-type lock
• Electrical connection 2, function
  Control side
• Electrical connection 2, number of pins/wires
  4
• Operating voltage range AC
  0 V ... 30 V
• Cable characteristic
  Standard
Bending radius, flexible cable installation
46 mm
Nominal conductor cross section
0.25 mm²
Note on materials
Free of copper and PTFE Free of phosphoric acid ester
Housing colour
Black
Explosion prevention and protection
Observe the information on the certificate Zone 22 (ATEX)
Electrical connection 1, connection type
Socket
Electrical connection 1, number of pins/wires
5
Electrical connection 2, connection type
Plug
Electrical connection 2, occupied pins/wires
4
Electrical connection 2, connection pattern
00991171
Cable length
2.5 m
Cable diameter tolerance
± 0.1 mm
Special features
Oil-resistant
Material of cable sheath
TPE-U(PUR)
Seals material
NBR
Type code
NEBU
Product weight
81 g
Electrical connection 1, cable outlet
Straight
Electrical connection 1, occupied pins/wires
4
Electrical connection for input 1, connection pattern
00991861
Electrical connection 2, connection technology
M8x1 A-coded as per EN 61076-2-104
DC operating voltage range
0 V ... 30 V
Current rating at 40°C
3 A
Connector cable test conditions
Flexural strength: as per Festo standard Cable chain: 5 million cycles, bending radius 75 mm
Note on degree of protection
In mounted state
CE marking (see declaration of conformity)
As per EU RoHS directive
Housing material
TPE-U(PUR)
Insulating sheath material
PP
Cable diameter
4.5 mm
Degree of protection
IP65 IP69K
Ambient temperature with flexible cable installation
-5 °C ... 70 °C
Color cable sheath
Gray
Material of screw-type lock
Brass, nickel-plated
