547697 Festo Vacuum Generators

Name: 547697
Brand: Festo

Part#:547697

Alt. Part#:VN-10-H

Manufacturer:Festo

Category:Vacuum Generators

Product Lifecycle:Active

Product description

vacuum generator cartridge VN-10-H For VN vacuum generators, high vacuum. Nominal size, Laval nozzle: 0,95 mm, Assembly position: Any, Ejector characteristic: (* Standard, * High vacuum), Operating pressure: 1 - 8 bar, Operating pressure for max. vacuum:

Product Details

Ejector characteristics
Standard High negative pressure
Max. vacuum
93 %
Air supply time at nominal operating pressure
1.02 s
Seals material
NBR
Nominal width of Laval nozzle
0.95 mm
Nominal operating pressure
6 bar
Product weight
1.65 g
Type code
VN
Symbol
00991490
Max. suction rate with respect to atmosphere
21.8 l/min
Temperature of medium
0 °C ... 60 °C
Female nozzle material
POM
Mounting position
Any
Operating pressure for max. vacuum
3.5 bar
Operating pressure
1 bar ... 8 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
0 °C ... 60 °C
Information on operating and pilot media
Operation with oil lubrication not possible
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Material of jet nozzle
Wrought aluminum alloy

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

547697 Related Documents

547697 DataSheet.pdf

Similar products from: Festo Vacuum Generators

193572

Festo

vacuum generator VN-07-L-T3-PQ2-VQ2-RO1 Standard, high suction rate, width 14 mm, T shape with plug connector and open silencer. Nominal size, Laval nozzle: 0,7 mm, Grid dimension: 14 mm, Design, silencer: open, Assembly position: Any, Ejector characteris

1 in stock

526105

Festo

vacuum generator VN-07-H-T2-PI2-VI2-RO1 Standard, high vacuum width 10 mm, T shape with female thread and open silencer. Nominal size, Laval nozzle: 0,7 mm, Grid dimension: 10 mm, Design, silencer: open, Assembly position: Any, Ejector characteristic: (*

4 in stock

Manufacturer warranty

547697 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 547697 with other Vacuum Generators products

Ejector characteristics

Max. vacuum

Air supply time at nomina...

Seals material

Nominal width of Laval no...

Nominal operating pressur...

Product weight

Type code

Symbol

Max. suction rate with re...

Selected product

Backordered

547697

Festo

vacuum generator cartridge VN-10-H For VN vacuum generators, high vacuum. Nominal size, Laval nozzle...

Ejector characteristicsStandard High negative press...

Max. vacuum93 %

Air supply time at nominal operating pressure1.02 s

Seals materialNBR

Nominal width of Laval nozzle0.95 mm

Nominal operating pressure6 bar

Product weight1.65 g

Type codeVN

Symbol00991490

Max. suction rate with respect to atmosphere21.8 l/min

4 in stock

526105

Festo

vacuum generator VN-07-H-T2-PI2-VI2-RO1 Standard, high vacuum width 10 mm, T shape with female threa...

Ejector characteristicsHigh vacuum Standard

Max. vacuum88 %

Air supply time at nominal operating pressure1.9 s

Seals material-

Nominal width of Laval nozzle0.7 mm

Nominal operating pressure6 bar

Product weight-

Type codeVN

Symbol00991489

Max. suction rate with respect to atmosphere16 l/min

1 in stock

193572

Festo

vacuum generator VN-07-L-T3-PQ2-VQ2-RO1 Standard, high suction rate, width 14 mm, T shape with plug ...

Ejector characteristicsHigh suction rate Standard

Max. vacuum-

Air supply time at nominal operating pressure0.5 s

Seals material-

Nominal width of Laval nozzle0.7 mm

Nominal operating pressure6 bar

Product weight-

Type codeVN

Symbol00991489

Max. suction rate with respect to atmosphere38.8 l/min

About the manufacturer

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...

Recently viewed products

MDM1PSD17B4

Novanta IMS

Novanta IMS MDM1PSD17B4 is a stepper motor within the Stepper motors sub-range, featuring an integrated driver and a 2-phase DC stepper motor SPI. This model is designed with a double motor stack Plus version and is equipped with a universal input. It utilizes a non-locking spring-clamp connector and a 10-pin IDC non-locking connector for connections. The supply voltage required for operation ranges from 12Vdc to 48Vdc, with an optimal performance at 24Vdc. It is designed for mounting with a 42x42mm flange. The MDM1PSD17B4 can operate within an ambient air temperature range of 0 to +85°C and has a degree of protection rated at IP20. The moment of inertia is specified at 0.057kg.cm^2, and it offers a stall torque of 42N.cm. The resolution of this stepper motor is defined by a 1.8° step angle.

0 in stock

ZBVB5

Schneider Electric

Schneider Electric ZBVB5 is a light unit designed as a light block with an integral LED. It features a degree of protection rated at IP20 and operates on a network frequency of 50/60 Hz. This unit is compatible with a supply voltage of 24 V, available in both AC and DC formats. The light emitted by the ZBVB5 is orange, and it is equipped with screw-clamp type terminals for secure connections.

1 in stock

M-2218-3.0ES500

Novanta IMS

Novanta IMS M-2218-3.0ES500 is a 2-phase DC stepper motor within the Stepper motors sub-range, featuring a 500-line single-end optical encoder with an index mark and a smooth shaft with a single flat (single shaft end) single (1) motor stack. It is designed with bare end flying leads for connection, operates on a rated current of 3A, and supports a supply voltage range of 24Vdc-75Vdc, including 48Vdc, 60Vdc, and 72Vdc options. This stepper motor is equipped with a 57x57mm flange for mounting, can operate in ambient air temperatures ranging from -25 to +40°C, and has a moment of inertia of 0.12kg.cm^2. It delivers a stall torque of 71N.cm (100oz-in) and can be stored in temperatures ranging from -25 to +70°C. The motor offers a resolution of 1.8° step angle.

0 in stock

Q45BB6LPQ5

Banner

Q45 Series: Polarized Retro; Range: 0.15 - 6 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M12 Integral QD

4 in stock

573482

Festo

solenoid valve VUVG-B14-M52-AZT-F-1T1L Valve function: 5/2 monostable, Type of actuation: electrical, Valve size: 14 mm, Standard nominal flow rate: 500 l/min, Operating pressure: -0,9 - 10 bar

0 in stock

MDM1PSD17B4

Novanta IMS

0 in stock

ZBVB5

Schneider Electric

1 in stock

M-2218-3.0ES500

Novanta IMS

0 in stock

MDM1PSD17B4

Novanta IMS

0 in stock

Relevant products

547698

Verified stock: 0

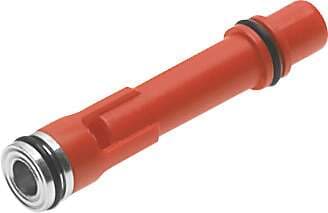

vacuum generator cartridge VN-10-L For VN vacuum generators, high suction rate. Nominal size, Laval nozzle: 0,95 mm, Assembly position: Any, Ejector characteristic: (* Standard, * High suction volume), Operating pressure: 1 - 8 bar, Nominal operating pres

Festo

547699

Verified stock: 0

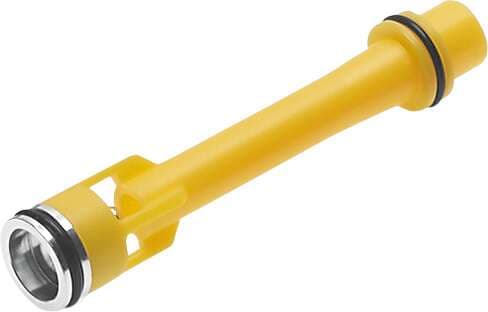

vacuum generator cartridge VN-14-H For VN vacuum generators, high vacuum. Nominal size, Laval nozzle: 1,4 mm, Assembly position: Any, Ejector characteristic: (* Standard, * High vacuum), Operating pressure: 1 - 8 bar, Operating pressure for max. vacuum: 3

Festo

547600

Verified stock: 0

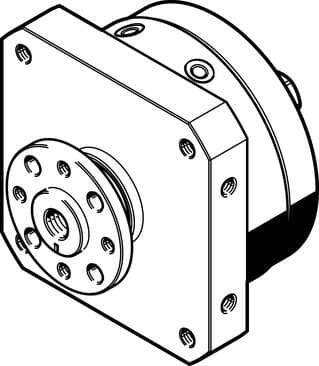

semi-rotary drive DSM-40-270-FW-A-B with flanged shaft and position sensing Size: 40, Swivel angle: 0 - 270 deg, Assembly position: Any, Mode of operation: double-acting, Design structure: Rotary vane
