546821 Festo Pneumatic Valves Accessories

546821 on Powermatic Associates
Festo

Part#:546821

Alt. Part#:VABF-S1-1-R2C2-C-6

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Product description

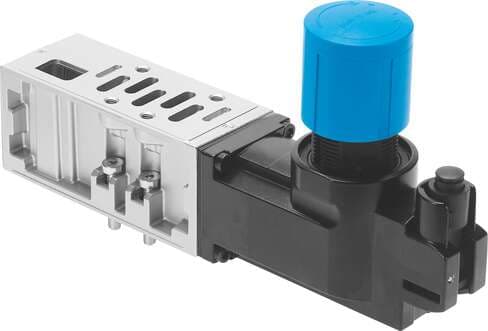

regulator plate VABF-S1-1-R2C2-C-6 For valve terminal VTSA, standard port pattern to 5599-1, up to max. 6 bar. Width: 42 mm, Based on the standard: ISO 5599-1, Assembly position: Any, Pneumatic vertical stacking: Pressure regulator for 2, Controller funct

Product Details

  • Inlet pressure 1 psi
    7.25 psi ... 145 psi
  • Width
    42 mm
  • Controller function
    Outlet pressure constant With secondary exhausting
  • Pressure regulation range
    1 bar ... 6 bar
  • Inlet pressure 1
    0.5 bar ... 10 bar
  • Pressure regulation range psi
    14.5 psi ... 87 psi
  • Type code
    VABF
  • Pneumatic vertical stacking
    Pressure regulator for 2
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Degree of protection
    IP65 NEMA 4
  • Controller housing material
    Die-cast aluminum
  • Pressure regulation range MPa
    0.1 MPa ... 0.6 MPa
  • Mounting position
    Any
  • Optional pressure gauge
    Possible
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Ambient temperature
    -5 °C ... 50 °C
  • Product weight
    640 g
  • Material of operator panel
    PA
  • Inlet pressure 1 MPa
    0.05 MPa ... 1 MPa
  • Based on norm
    ISO 5599-1
  • Symbol
    00991581
  • Corrosion resistance class (CRC)
    0 - No corrosion stress
  • Pressure gauge connection
    With retaining clamp
  • Vertical stacking mounting type
    On manifold sub-base On individual sub-base
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

546821 Related Documents

546821 DataSheet.pdf
