546163 Festo Process & Media Valves
Part#:546163
Alt. Part#:VZWM-L-M22C-G38-F5-R1
Manufacturer:Festo
Category:Process & Media Valves
Product Lifecycle:Active
Product description

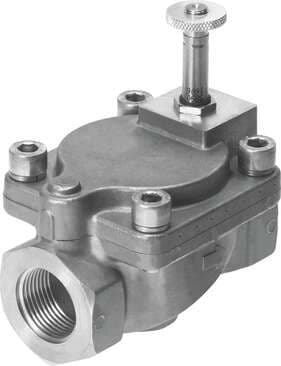

solenoid valve VZWM-L-M22C-G38-F5-R1 Servo-controlled, with diaphragm, G3/8" connection, stainless steel version. Design structure: (* Diaphragm valve, * Servo controlled), Type of actuation: electrical, Sealing principle: soft, Assembly position: Prefera
Product Details
- Type code VZWM
- Fitting connection G3/8
- Flow direction Non-reversible
- Ambient temperature -10 °C ... 60 °C
- On switching time 8 ms
- C value 8.8 l/sbar
- Material number of housing 1.4581
- Max. tightening torque for connecting thread 60 Nm
- Sealing principle Soft
- Valve function 2/2, closed, monostable
- Symbol 00995681
- Temperature of medium -10 °C ... 60 °C
- Response time "off" for liquid media 190 ms
- Switching time off 10 ms
- Seals material NBR
- Max. tightening torque for coil fastening 2 Nm
- Design Diaphragm valve servo-controlled
- Mounting position Preferably upright
- Nominal width 13 mm
- Medium pressure of liquid media 0.5 bar ... 6 bar
- Differential pressure 0.5 bar
- Temperature of liquid media 5 °C ... 50 °C
- b-value 0.35
- Housing material Cast stainless steel
- Armature tube material High-alloy steel
- Actuation type Electrical
- Type of mounting Line installation
- Medium Compressed air as per ISO 8573-1:2010 [7:4:4] Neutral liquids
- Medium pressure of gaseous media 0.5 bar ... 10 bar
- Max. viscosity 22 mm²/s
- Standard nominal flow rate 2100 l/min
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Product weight 400 g
- Max. torque for cover screw 20 Nm
- Electrical connection Solenoid coil type MH-... , coil can be ordered as an accessory
- Type of control Pilot-controlled
- Flow rate Kv 2 m³/h
- Response time "on" for liquid media 110 ms
- Corrosion resistance class (CRC) 3 - High corrosion stress
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
