546152 Festo Process & Media Valves
Part#:546152
Alt. Part#:VZWM-L-M22C-G112-F5
Manufacturer:Festo
Category:Process & Media Valves
Product Lifecycle:Active
Product description

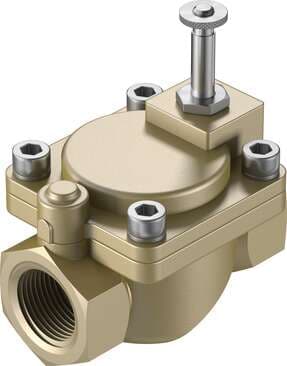

solenoid valve VZWM-L-M22C-G112-F5 Servo-controlled, with diaphragm, G11/2" connection. Design structure: (* Diaphragm valve, * Servo controlled), Type of actuation: electrical, Sealing principle: soft, Assembly position: Preferably upright, Mounting type
Product Details
- Sealing principle Soft
- Type of mounting Line installation
- Flow direction Non-reversible
- Medium pressure of liquid media 0.7 bar ... 6 bar
- Symbol 00995681
- Temperature of liquid media 5 °C ... 50 °C
- C value 82 l/sbar
- Armature tube material High-alloy steel
- Max. torque for cover screw 30 Nm
- Valve function 2/2, closed, monostable
- Differential pressure 0.7 bar
- Temperature of medium -10 °C ... 60 °C
- Standard nominal flow rate 26400 l/min
- On switching time 26 ms
- Seals material NBR
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Type code VZWM
- Mounting position Preferably upright
- Nominal width 40 mm
- Medium Compressed air as per ISO 8573-1:2010 [7:4:4] Neutral liquids
- Ambient temperature -10 °C ... 60 °C
- Response time "off" for liquid media 2000 ms
- Switching time off 20 ms
- Material number of housing 2.0402
- CE marking (see declaration of conformity) as per EU pressure equipment directive
- Design Diaphragm valve servo-controlled
- Medium pressure of gaseous media 0.7 bar ... 10 bar
- Max. viscosity 22 mm²/s
- Flow rate Kv 27.4 m³/h
- b-value 0.67
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Product weight 2570 g
- Max. tightening torque for coil fastening 2 Nm
- Actuation type Electrical
- Fitting connection G1 1/2
- Electrical connection Solenoid coil type MH-... , coil can be ordered as an accessory
- Type of control Pilot-controlled
- Response time "on" for liquid media 1400 ms
- Housing material Brass
- Max. tightening torque for connecting thread 540 Nm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
