543533 Festo Pneumatic Valves Accessories

543533 on Powermatic Associates
Festo

Part#:543533

Alt. Part#:VABF-S3-1-R2C2-C-6

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Product description

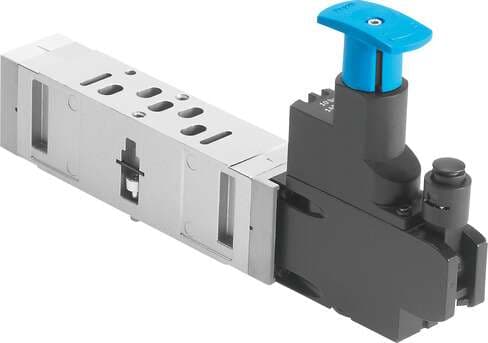

regulator plate VABF-S3-1-R2C2-C-6 For valve terminal VDMA-01/02, standard port pattern to 15407-1, up to 6 bar. Width: 26 mm, Based on the standard: ISO 15407-1, Assembly position: Any, Pneumatic vertical stacking: Pressure regulator for 2, Controller fu

Product Details

  • Type code
    VABF
  • Mounting position
    Any
  • Pressure regulation range
    2 bar ... 6 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Note on materials
    RoHS-compliant
  • Pressure regulation range MPa
    0.2 MPa ... 0.6 MPa
  • Based on norm
    ISO 15407-1
  • Degree of protection
    IP65 NEMA 4
  • Ambient temperature
    -5 °C ... 50 °C
  • Controller housing material
    Die-cast aluminum
  • Pressure regulation range psi
    29 psi ... 87 psi
  • Symbol
    00991581
  • Corrosion resistance class (CRC)
    0 - No corrosion stress
  • Vertical stacking mounting type
    On manifold sub-base On individual sub-base
  • Width
    26 mm
  • Pneumatic vertical stacking
    Pressure regulator for 2
  • Optional pressure gauge
    Possible
  • Product weight
    305 g
  • Material of operator panel
    PA
  • Controller function
    Outlet pressure constant With secondary exhausting
  • Inlet pressure 1
    0.5 bar ... 10 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Pressure gauge connection
    With retaining clamp

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
