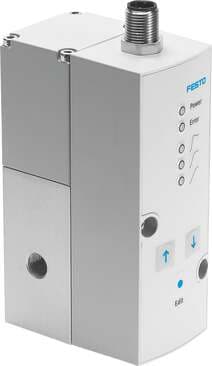

542250 Festo Proportional Valves

Product Details

• Nominal width pressurization
  6 mm
• Sealing principle
  Soft
• Type of control
  Pilot-controlled
• Pressure regulation range
  0.1 bar ... 10 bar
• Analog input signal range
  4 - 20 mA
• Information on operating and pilot media
  Operation with oil lubrication not possible
• Ambient temperature
  0 °C ... 60 °C
• Repetition accuracy FS
  0.5 %
• Type of mounting
  Optionally: With accessories
• Type code
  VPPM
• Safety instructions
  VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
• Standard nominal flow rate
  1400 l/min
• Analog output signal range
  4 - 20 mA
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
• Degree of protection
  IP65
• Linearity error FS
  2 %
• Pneumatic connection 1
  Sub-base
• Note on materials
  RoHS-compliant
• KC characters
  KC EMC
• Actuation type
  Electrical
Mounting position
Any
Symbol
00995303
Valve function
3-way proportional pressure control valve
DC operating voltage range
21.6 V ... 26.4 V
Duty cycle
100%
CE marking (see declaration of conformity)
As per EU EMC directive
Certification
RCM compliance mark c UL us - Listed (OL)
Temperature coefficient
0.04 %/K
Pneumatic connection 2
Sub-base
Housing material
Wrought aluminum alloy Anodized
Design
Pilot-controlled diaphragm regulator
Reverse polarity protection
for all electrical connections
Display type
LED
Inlet pressure 1
0 bar ... 11 bar
Residual ripple
10 %
Max. electrical power consumption
7 W
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
10 °C ... 50 °C
Pneumatic connection 3
Sub-base
Exhaust nominal width
4.5 mm
Short-circuit protection
For all electrical connections
Reset method
Mechanical spring
Max. pressure hysteresis
0.05 bar
Max. current consumption
300 mA
Switching output
NPN
Product weight
400 g
Electrical connection
8-pin Plug
