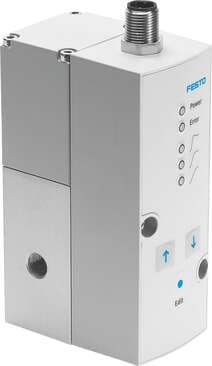

542245 Festo Proportional Valves

Product Details

• Exhaust nominal width
  4.5 mm
• Mounting position
  Any
• Design
  Pilot-controlled diaphragm regulator
• Display type
  LED
• Standard nominal flow rate
  380 l/min
• Analog output signal range
  0 - 10 V
• Temperature of medium
  10 °C ... 50 °C
• Ambient temperature
  0 °C ... 60 °C
• Pneumatic connection 3
  Sub-base
• Reverse polarity protection
  for all electrical connections
• Inlet pressure 1
  0 bar ... 4 bar
• Max. current consumption
  300 mA
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
• Degree of protection
  IP65
• Electrical connection
  8-pin Plug
• Housing material
  Wrought aluminum alloy Anodized
• Nominal width pressurization
  6 mm
• Sealing principle
  Soft
• Reset method
  Mechanical spring
• Valve function
  3-way proportional pressure control valve
Max. pressure hysteresis
0.01 bar
Max. electrical power consumption
7 W
Information on operating and pilot media
Operation with oil lubrication not possible
Certification
RCM compliance mark c UL us - Listed (OL)
Temperature coefficient
0.04 %/K
KC characters
KC EMC
Actuation type
Electrical
Symbol
00995303
Safety instructions
VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
Type of control
Pilot-controlled
Residual ripple
10 %
Duty cycle
100%
Switching output
NPN
CE marking (see declaration of conformity)
As per EU EMC directive
Product weight
400 g
Type of mounting
Optionally: With accessories
Note on materials
RoHS-compliant
Type code
VPPM
Short-circuit protection
For all electrical connections
Pressure regulation range
0.02 bar ... 2 bar
DC operating voltage range
21.6 V ... 26.4 V
Analog input signal range
0 - 10 V
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Linearity error FS
2 %
Repetition accuracy FS
0.5 %
Pneumatic connection 1
Sub-base
Pneumatic connection 2
Sub-base

Related documents 542245 Specs
