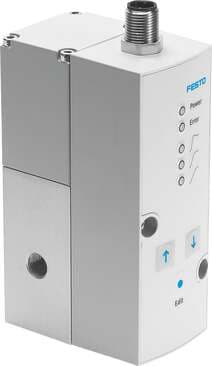

542241 Festo Proportional Valves

Product Details

• KC characters
  KC EMC
• Sealing principle
  Soft
• Valve function
  3-way proportional pressure control valve
• Inlet pressure 1
  0 bar ... 11 bar
• Max. pressure hysteresis
  0.05 bar
• Switching output
  NPN
• Type code
  VPPM
• Design
  Pilot-controlled diaphragm regulator
• Display type
  LED
• DC operating voltage range
  21.6 V ... 26.4 V
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
• Product weight
  400 g
• Type of mounting
  Optionally: With accessories
• Repetition accuracy FS
  0.5 %
• Safety instructions
  VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
• Reverse polarity protection
  for all electrical connections
• Max. current consumption
  300 mA
• Residual ripple
  10 %
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Linearity error FS
  1 %
Electrical connection
8-pin Plug
Exhaust nominal width
4.5 mm
Mounting position
Any
Symbol
00995303
Pressure regulation range
0.1 bar ... 10 bar
Duty cycle
100%
Analog output signal range
0 - 10 V
Degree of protection
IP65
Ambient temperature
0 °C ... 60 °C
Temperature coefficient
0.04 %/K
Housing material
Wrought aluminum alloy Anodized
Nominal width pressurization
6 mm
Actuation type
Electrical
Short-circuit protection
For all electrical connections
Reset method
Mechanical spring
Type of control
Pilot-controlled
Standard nominal flow rate
1400 l/min
Max. electrical power consumption
7 W
Analog input signal range
0 - 10 V
Information on operating and pilot media
Operation with oil lubrication not possible
Temperature of medium
10 °C ... 50 °C
Pneumatic connection 2
Sub-base
Note on materials
RoHS-compliant
CE marking (see declaration of conformity)
As per EU EMC directive
Certification
RCM compliance mark c UL us - Listed (OL)
Pneumatic connection 1
Sub-base
Pneumatic connection 3
Sub-base
