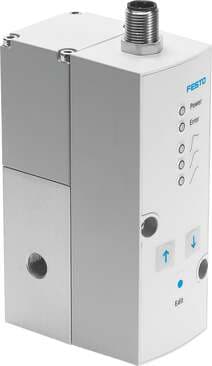

542234 Festo Proportional Valves

Product Details

• Mounting position
  Any
• Design
  Pilot-controlled diaphragm regulator
• Exhaust nominal width
  4.5 mm
• Short-circuit protection
  For all electrical connections
• Reverse polarity protection
  for all electrical connections
• Pressure regulation range
  0.06 bar ... 6 bar
• Standard nominal flow rate
  900 l/min
• Analog output signal range
  0 - 10 V
• Information on operating and pilot media
  Operation with oil lubrication not possible
• Degree of protection
  IP65
• Nominal width pressurization
  6 mm
• Actuation type
  Electrical
• Reset method
  Mechanical spring
• Inlet pressure 1
  0 bar ... 8 bar
• DC operating voltage range
  21.6 V ... 26.4 V
• Residual ripple
  10 %
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Temperature of medium
  10 °C ... 50 °C
• Product weight
  400 g
• Note on materials
  RoHS-compliant
KC characters
KC EMC
Safety instructions
VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
Type of control
Pilot-controlled
Max. pressure hysteresis
0.03 bar
Max. current consumption
300 mA
Max. electrical power consumption
7 W
Analog input signal range
0 - 10 V
Ambient temperature
0 °C ... 60 °C
Temperature coefficient
0.04 %/K
Pneumatic connection 2
G1/8
Type code
VPPM
Sealing principle
Soft
Symbol
00995303
Valve function
3-way proportional pressure control valve
Duty cycle
100%
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Certification
RCM compliance mark c UL us - Listed (OL)
Repetition accuracy FS
0.5 %
Electrical connection
8-pin Plug
Display type
LED
Switching output
NPN
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Linearity error FS
2 %
Pneumatic connection 1
G1/8
Housing material
Wrought aluminum alloy Anodized
Type of mounting
Optionally: With accessories
Pneumatic connection 3
G1/8

Related documents 542234 Specs
