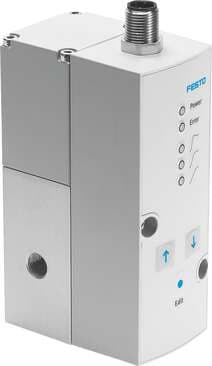

542232 Festo Proportional Valves

Product Details

• Nominal width pressurization
  6 mm
• Sealing principle
  Soft
• Symbol
  00995303
• Valve function
  3-way proportional pressure control valve
• Max. current consumption
  300 mA
• Residual ripple
  10 %
• Information on operating and pilot media
  Operation with oil lubrication not possible
• Degree of protection
  IP65
• Temperature of medium
  10 °C ... 50 °C
• Pneumatic connection 1
  G1/8
• Exhaust nominal width
  4.5 mm
• Design
  Pilot-controlled diaphragm regulator
• Short-circuit protection
  For all electrical connections
• Reset method
  Mechanical spring
• Inlet pressure 1
  0 bar ... 11 bar
• Standard nominal flow rate
  1400 l/min
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
• Analog input signal range
  4 - 20 mA
• Temperature coefficient
  0.04 %/K
• Note on materials
  RoHS-compliant
KC characters
KC EMC
Type code
VPPM
Reverse polarity protection
for all electrical connections
Pressure regulation range
0.1 bar ... 10 bar
DC operating voltage range
21.6 V ... 26.4 V
Analog output signal range
4 - 20 mA
Ambient temperature
0 °C ... 60 °C
Linearity error FS
1 %
Type of mounting
Optionally: With accessories
Pneumatic connection 3
G1/8
Safety instructions
VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
Type of control
Pilot-controlled
Max. pressure hysteresis
0.05 bar
Max. electrical power consumption
7 W
CE marking (see declaration of conformity)
As per EU EMC directive
Certification
RCM compliance mark c UL us - Listed (OL)
Electrical connection
8-pin Plug
Actuation type
Electrical
Mounting position
Any
Display type
LED
Duty cycle
100%
Switching output
NPN
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Product weight
400 g
Repetition accuracy FS
0.5 %
Pneumatic connection 2
G1/8
Housing material
Wrought aluminum alloy Anodized

Related documents 542232 Specs
