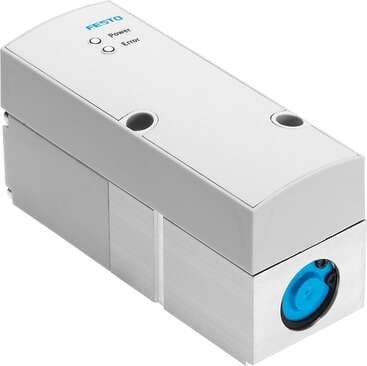

542222 Festo Proportional Valves

Product Details

• Type code
  VPPM
• Design
  Pilot-controlled diaphragm regulator
• Reverse polarity protection
  for all electrical connections
• Inlet pressure 1
  0 bar ... 11 bar
• Max. current consumption
  300 mA
• KC characters
  KC EMC
• Sealing principle
  Soft
• Safety instructions
  VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
• Display type
  LED
• Max. electrical power consumption
  7 W
• Degree of protection
  IP65
• Electrical connection
  Via sub-base
• Note on materials
  RoHS-compliant
• Type of control
  Pilot-controlled
• Pressure regulation range
  0.1 bar ... 10 bar
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Repetition accuracy FS
  0.5 %
• Pneumatic connection 3
  Sub-base
• Exhaust nominal width
  4.5 mm
Mounting position
Any
Symbol
00995303
Valve function
3-way proportional pressure control valve
Standard nominal flow rate
1400 l/min
DC operating voltage range
21.6 V ... 26.4 V
CE marking (see declaration of conformity)
As per EU EMC directive
Ambient temperature
0 °C ... 60 °C
Linearity error FS
2 %
Type of mounting
Optionally: With accessories
Nominal width pressurization
6 mm
Actuation type
Electrical
Short-circuit protection
For all electrical connections
Reset method
Mechanical spring
Max. pressure hysteresis
0.05 bar
Duty cycle
100%
Information on operating and pilot media
Operation with oil lubrication not possible
Temperature of medium
10 °C ... 50 °C
Temperature coefficient
0.04 %/K
Pneumatic connection 2
Sub-base
Housing material
Wrought aluminum alloy Anodized
Residual ripple
10 %
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Product weight
400 g
Pneumatic connection 1
Sub-base
