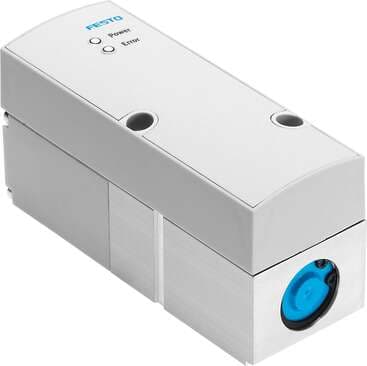

542217 Festo Proportional Valves

Product Details

• KC characters
  KC EMC
• Actuation type
  Electrical
• Safety instructions
  VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
• Reset method
  Mechanical spring
• Inlet pressure 1
  0 bar ... 4 bar
• Max. current consumption
  300 mA
• Residual ripple
  10 %
• Temperature of medium
  10 °C ... 50 °C
• Ambient temperature
  0 °C ... 60 °C
• Repetition accuracy FS
  0.5 %
• Pneumatic connection 1
  Sub-base
• Note on materials
  RoHS-compliant
• Nominal width pressurization
  6 mm
• Short-circuit protection
  For all electrical connections
• Type of control
  Pilot-controlled
• Standard nominal flow rate
  380 l/min
• Max. electrical power consumption
  7 W
• Degree of protection
  IP65
• Linearity error FS
  1 %
• Pneumatic connection 3
  Sub-base
Type code
VPPM
Symbol
00995303
Valve function
3-way proportional pressure control valve
DC operating voltage range
21.6 V ... 26.4 V
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
CE marking (see declaration of conformity)
As per EU EMC directive
Temperature coefficient
0.04 %/K
Type of mounting
Optionally: With accessories
Sealing principle
Soft
Design
Pilot-controlled diaphragm regulator
Display type
LED
Duty cycle
100%
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Certification
RCM compliance mark c UL us - Listed (OL)
Electrical connection
Via sub-base
Housing material
Wrought aluminum alloy Anodized
Exhaust nominal width
4.5 mm
Mounting position
Any
Reverse polarity protection
for all electrical connections
Pressure regulation range
0.02 bar ... 2 bar
Max. pressure hysteresis
0.01 bar
Information on operating and pilot media
Operation with oil lubrication not possible
Product weight
400 g
Pneumatic connection 2
Sub-base
