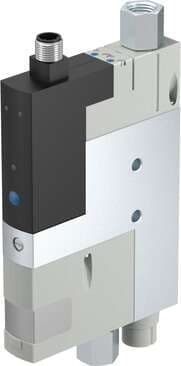

540026 Festo Actuator Accessories

Product Details

• Manual override
  Non-detenting
• Measuring principle
  Piezoresistive
• Valve function
  Closed
• Switching status indication
  Optical
• Switching position indication
  LED
• Max. suction rate with respect to atmosphere
  16 l/min
• Max. output current
  100 mA
• Voltage drop
  ≤ 1.5 V
• Relative air humidity
  5 - 85 %
• Ambient temperature
  0 °C ... 50 °C
• Input switching logic
  PNP (positive switching)
• Pneumatic connection 1
  G1/4
• Female nozzle material
  POM
• Material of pin contacts
  Brass, gold-plated
• KC characters
  KC EMC
• Muffler construction type
  Open
• Short-circuit protection
  yes
• Reverse polarity protection
  for all electrical connections
• Max. vacuum
  93 %
• Duty cycle
  100%
Coil characteristics
24 V DC: low-current phase 0.3 W, high-current phase 2.55 W
Information on operating and pilot media
Operation with oil lubrication not possible
Certification
RCM compliance mark c UL us - Listed (OL)
Reproducibility, switching value FS
0.6 %
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Material of screws
Steel
Type code
OVEM
Grade of filtration
40 µm
Measured variable
Relative pressure
Symbol
00992094
Display type
LED
Setting options
Teach-in
DC operating voltage range
20.4 V ... 27.6 V
Insulation voltage
50 V
Switching output
PNP
Surge resistance
0.8 kV
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium
0 °C ... 50 °C
Protection class
III
Product weight
325 g
Hysteresis
0.02 bar
Type of mounting
With through-hole With accessories
Pneumatic connection 3
Pneumatic muffler integrated
Width dimension
20 mm
Ejector characteristics
High vacuum Standard
Design
Modular
Switching function
Threshold value comparator Threshold value with fixed hysteresis
Switching input to standard
IEC 61131-2
Operating pressure
2 bar ... 8 bar
Nominal operating pressure
6 bar
Inductive protective circuit
Adapted to MZ, MY and ME coils
Idle current
< 80 mA
Contamination level
3
CE marking (see declaration of conformity)
As per EU EMC directive
Noise level at nominal operating pressure
58 dB(A)
Max. tightening torque
0.8 Nm with internal thread 2.5 Nm with through-hole
Accuracy in ± % FS
0.5 %FS
Electrical connection
5-pin Plug
Seals material
NBR
Compressed air filter material
Fabric Sintered steel
Material of plug housing
Brass, nickel-plated
Material of keypad
PA-reinforced
Nominal width of Laval nozzle
0.7 mm
Mounting position
Any
Integrated function
Ejector pulse valve, electric Vacuum switch
Switching element function
N/O contact
Setting range threshold value
-1 bar ... 0 bar
Operating pressure for max. vacuum
4.1 bar
Air supply time at nominal operating pressure
0.4 s
Residual current
0.1 mA
Overload protection
Available
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Degree of protection
IP65
Pressure measuring range
-1 bar ... 0 bar
Vacuum connection
G1/4
Material of adjusting screw
Steel
Muffler material
Wrought aluminum alloy PU foam
Material of jet nozzle
Wrought aluminum alloy
Housing material
Die-cast aluminum PA-reinforced
Material of filter housing
PA-reinforced
Material of pins
Steel
Material of pneumatic fitting
Wrought aluminum alloy, anodized
