537790 Festo Actuator Accessories

Name: 537790
Brand: Festo

Part#:537790

Alt. Part#:SNCL-12

Manufacturer:Festo

Category:Actuator Accessories

Product Lifecycle:Active

Product description

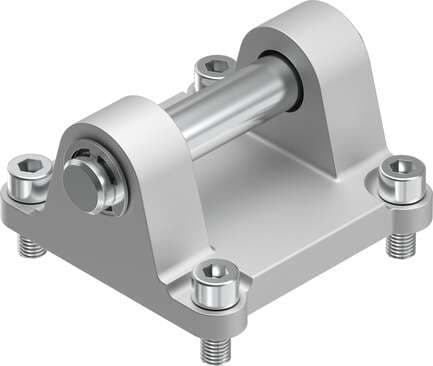

swivel flange SNCL-12 Size: 12, Based on the standard: ISO 21287, Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Ambient temperature: -40 - 90 °C, Product weight: 20 g

Product Details

Type code
SNCL
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Note on materials
Free of copper and PTFE RoHS-compliant
Material of bearing
Polymer
Product weight
20 g
Material of screws
Steel Galvanized
Size
12
Ambient temperature
-40 °C ... 90 °C
Based on norm
ISO 21287
Mounting material
Wrought aluminum alloy

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

537790 Related Documents

537790 DataSheet.pdf
