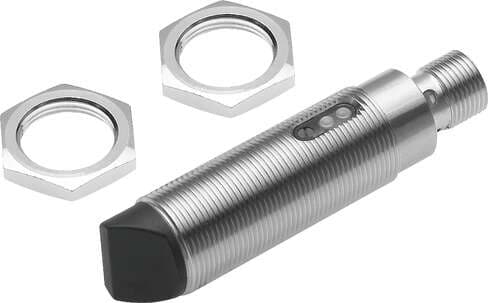

537718 Festo Pneumatic Components

Product Details

• Symbol
  00991640
• Measured variable
  Position
• Method of measurement
  Reflection light sensor
• Max. switching frequency
  1000 Hz
• DC operating voltage range
  10 V ... 36 V
• Size
  M18x1
• Housing material
  Brass Chrome-plated
• Setting options
  Potentiometer
• Ambient temperature with flexible cable installation
  -5 °C ... 55 °C
• Type of light
  Red
• Max. output current
  200 mA
• Short-circuit protection
  Pulsed
• Reverse polarity protection
  for all electrical connections
• Switching status indication
  LED yellow
• Degree of protection
  IP65 IP67
• Design
  Round
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Working range
  0 mm ... 600 mm
• Voltage drop
  ≤ 2 V
• Idle current
  15 mA
Product weight
56 g
Material of union nut
Brass Chrome-plated
Setting range, lower limit
100 mm
Conforms to standard
EN 60947-5-2
Note on materials
Free of copper and PTFE
Ambient temperature
-25 °C ... 55 °C
Switching output
NPN
Electrical connection
3-pin Plug
Tightening torque
20 Nm
Function reserve indication
LED green
Corrosion resistance class (CRC)
1 - Low corrosion stress
Type code
SOEG
CE marking (see declaration of conformity)
As per EU EMC directive
Measuring principle
Optoelectronic
Switching element function
Bright-switching
Residual ripple
20 %
Type of mounting
With lock nut
Setting range, upper limit
600 mm
