537273 Festo Pressure Boosters

537273 on Powermatic Associates
Festo

Part#:537273

Alt. Part#:DPA-40-10

Manufacturer:Festo

Category:Pressure Boosters

Product Lifecycle:Active

Product description

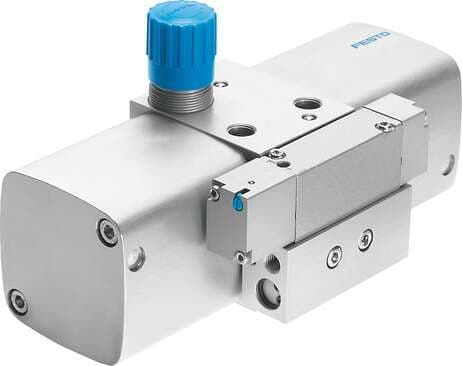

pressure booster DPA-40-10 for generating higher pressures. Piston diameter: 40 mm, Assembly position: Any, Design structure: Twin-piston pressure booster, Pressure gauge: Prepared for G1/8, Output pressure 2: 4,5 - 10 bar

Product Details

  • Design
    Twin-piston pressure intensifier
  • Inlet pressure 1
    2.5 bar ... 8 bar
  • Pneumatic connection 2
    G¼
  • Information on pressure regulation range
    If the controller spring is tensioned to the maximum, the maximum output pressure may be exceeded by 40%.
  • Symbol
    00991432
  • Pressure regulation range
    4.5 bar ... 10 bar
  • Storage temperature
    5 °C ... 60 °C
  • Pneumatic connection 1
    G1/4
  • Mounting position
    Any
  • Operating pressure
    2.5 bar ... 8 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Type of mounting
    With internal thread
  • Piston diameter
    40 mm
  • Outlet pressure 2
    4.5 bar ... 10 bar
  • Ambient temperature
    5 °C ... 60 °C
  • Pneumatic connection 3
    M7
  • Type code
    DPA
  • Pressure gauge
    G1/8 prepared
  • Information on operating and pilot media
    Operation with oil lubrication not possible
  • Product weight
    1500 g
  • Note on materials
    RoHS-compliant
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:3:4]

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
