537222 Festo Compressed Air Preparation Units

537222 on Powermatic Associates
Festo

Part#:537222

Alt. Part#:MS4N-LFM-1/4-AUV-DA

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

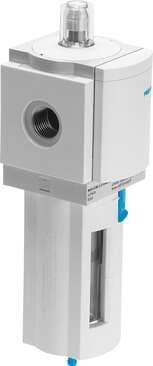

micro filter MS4N-LFM-1/4-AUV-DA 0.01 µm filter, metal bowl guard, fully automatic condensate drain, with differential pressure indicator, flow direction from left to right. Series: MS, Size: 4, Design structure: Fibre filter, Grade of filtration: 0,01 µm

Product Details

  • Grade of filtration
    0.01 µm
  • Series
    MS
  • Type code
    MS4N-LFM
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas
  • Max. standard flow rate for air quality class
    360 l/min
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Storage temperature
    -10 °C ... 60 °C
  • Pneumatic connection 1
    1/4 NPT
  • Inspection window material
    PA
  • Size
    4
  • Condensate drain
    Fully automatic
  • Min. standard flow rate for air quality class
    54 l/min
  • Temperature of medium
    5 °C ... 60 °C
  • Differential pressure display
    Visual display
  • Compressed air filter material
    Borosilicate fiber
  • Material of bowl
    Die-cast aluminum Wrought aluminum alloy
  • Symbol
    00991544
  • Max. condensate volume
    25 ml
  • Residual oil content
    0.01 mg/m³
  • Pneumatic connection 2
    1/4 NPT
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • For use in the food industry
    See supplementary material information
  • Design
    Fiber filter
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [1:7:2]
  • Operating pressure
    2 bar ... 12 bar
  • Bowl guard
    Integrated as metal bowl guard
  • Ambient temperature
    5 °C ... 60 °C
  • Mounting position
    Vertical +/- 5°
  • Product weight
    350 g
  • Filter efficiency
    99.9999 %
  • Type of mounting
    Optionally: With accessories
  • Housing material
    Die-cast aluminum
  • Seals material
    NBR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
