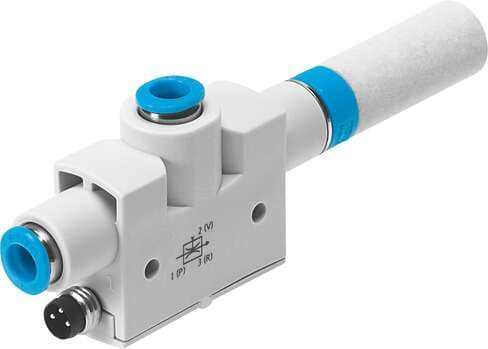

536798 Festo Vacuum Generators

536798 on Powermatic Associates
Festo

Part#:536798

Alt. Part#:VN-05-L-T4-PQ2-VQ2-O1-P

Manufacturer:Festo

Category:Vacuum Generators

Product Lifecycle:Active

Product description

vacuum generator VN-05-L-T4-PQ2-VQ2-O1-P With integrated vacuum switch. Standard, high suction rate, width 18 mm, T shape with plug connector and open silencer. Nominal size, Laval nozzle: 0,45 mm, Grid dimension: 16 mm, Design, silencer: open, Assembly p

Product Details

  • Mounting position
    Any
  • Measuring principle
    Piezoresistive
  • Setting range threshold value
    -1 bar ... 0 bar
  • Operating pressure
    1 bar ... 8 bar
  • Switch-off time
    ≤ 4 ms
  • Residual ripple
    10 %
  • Overload protection
    Available
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Temperature of medium
    0 °C ... 60 °C
  • Noise level at nominal operating pressure
    54 dB(A)
  • Electrical connection
    3-pin M8
  • Accuracy in ± % FS
    1.5 %FS
  • Vacuum connection
    QS-6
  • Housing material
    POM-reinforced
  • Type code
    VN
  • Integrated function
    Pneumatic muffler open Vacuum switch
  • Switching function
    Threshold value comparator Threshold value with fixed hysteresis
  • Setting options
    Teach-in
  • Inductive protective circuit
    Adapted to MZ, MY and ME coils
  • Max. output current
    100 mA
  • Voltage drop
    ≤ 1.5 V
  • Cleaning advice
    Soap suds
  • Max. tightening torque
    0.6 Nm
  • Long-term drift
    ±0.5 % FS max.
  • Seals material
    NBR
  • Material of keypad
    POM
  • Ejector characteristics
    High suction rate Standard
  • Measured variable
    Relative pressure
  • Method of measurement
    Relative
  • Reverse polarity protection
    for all electrical connections
  • Operating pressure for max. suction rate
    5 bar
  • DC operating voltage range
    15 V ... 30 V
  • Switching output
    PNP
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Pressure measuring range
    -1 bar ... 0 bar
  • Type of mounting
    With through-hole
  • Muffler material
    PE
  • KC characters
    KC EMC
  • Width dimension
    16 mm
  • Design
    T-shape
  • Switching element function
    N/O contact
  • Display type
    LED
  • Switching status indication
    LED
  • Nominal operating pressure
    6 bar
  • Residual current
    ≤ 0.3 mA
  • Information on operating and pilot media
    Operation with oil lubrication not possible
  • Degree of protection
    IP40
  • Product weight
    33 g
  • Temperature coefficient of switching point
    0.05 %/K
  • Pneumatic connection 3
    Pneumatic muffler open
  • Fiber-optic cable
    PC
  • Material of jet nozzle
    Wrought aluminum alloy
  • Nominal width of Laval nozzle
    0.45 mm
  • Muffler construction type
    Open
  • Short-circuit protection
    Pulsed
  • Symbol
    00991917
  • Max. suction rate with respect to atmosphere
    13.6 l/min
  • On time
    ≤ 4 ms
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Ambient temperature
    0 °C ... 50 °C
  • Certification
    RCM compliance mark
  • Hysteresis in ± %FS
    2 %FS
  • Pneumatic connection 1
    QS-6
  • Female nozzle material
    POM
  • Material of pneumatic fitting
    Brass Nickel-plated
  • Material of plug housing
    Brass Chrome-plated and nickel-plated

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
