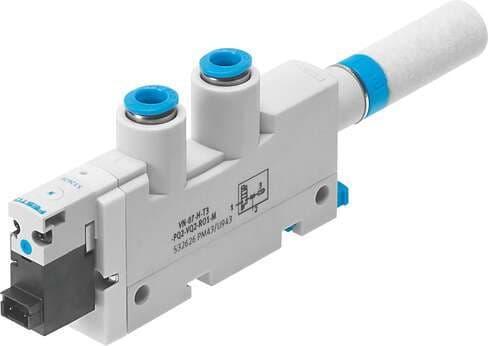

532640 Festo Vacuum Generators

Product Details

• Nominal width of Laval nozzle
  0.95 mm
• Type code
  VN
• Ejector characteristics
  Standard High negative pressure
• Operating pressure for max. suction rate
  3 bar
• Air supply time at nominal operating pressure
  1.06 s
• Mounting position
  Any
• Manual override
  Non-detenting
• Valve function
  2/2
• Nominal operating pressure
  6 bar
• Duty cycle
  100%
• Degree of protection
  IP40
• Type of mounting
  With through-hole With accessories
• Material of connecting thread
  Wrought aluminum alloy, anodized
• Housing material
  PA-reinforced POM-reinforced
• Material of pneumatic fitting
  Brass Nickel-plated
• Width dimension
  14 mm
• Design
  T-shape
• Operating pressure
  2 bar ... 8 bar
• DC operating voltage range
  21.6 V ... 26.4 V
• Noise level at nominal operating pressure
  71 dB(A)
Product weight
63 g
Vacuum connection
QS-6
Material of screws
Steel
Symbol
00991944
Max. vacuum
93 %
Max. suction rate with respect to atmosphere
21.8 l/min
Information on operating and pilot media
Operation with oil lubrication not possible
Temperature of medium
0 °C ... 50 °C
Pneumatic connection 3
Pneumatic muffler open
Note on materials
Free of copper and PTFE RoHS-compliant
Muffler material
PE
Muffler construction type
Open
Integrated function
Ejector pulse valve, pneumatic Pneumatic muffler open
Operating pressure for max. vacuum
3.5 bar
Electrical power consumption
1.2 W
Corrosion resistance class (CRC)
1 - Low corrosion stress
Ambient temperature
0 °C ... 50 °C
Female nozzle material
POM
Material of jet nozzle
Wrought aluminum alloy
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Electrical connection
Plug
Pneumatic connection 1
QS-6
Seals material
NBR
