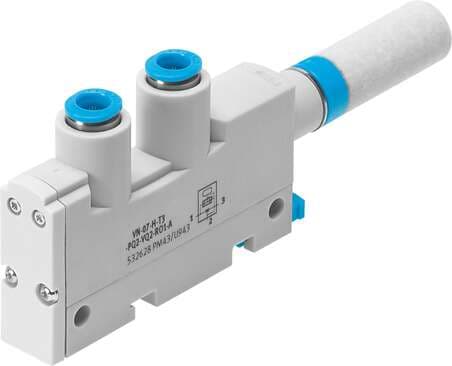

532638 Festo Vacuum Generators
Part#:532638
Alt. Part#:VN-10-H-T3-PQ2-VQ2-RO1-A
Manufacturer:Festo
Category:Vacuum Generators
Product Lifecycle:Active
Product description
vacuum generator VN-10-H-T3-PQ2-VQ2-RO1-A With ejector pulse. Standard, high vacuum, width 14 mm, T shape with plug connector and open silencer. Nominal size, Laval nozzle: 0,95 mm, Grid dimension: 14 mm, Design, silencer: open, Assembly position: Any, Ej
Product Details
- Nominal width of Laval nozzle 0.95 mm
- Integrated function Ejector pulse valve, pneumatic Pneumatic muffler open
- Max. vacuum 93 %
- Cleaning advice Soap suds
- Pneumatic connection 1 QS-6
- Material of screws Steel
- Operating pressure 1 bar ... 8 bar
- Air supply time at nominal operating pressure 0.96 s
- Information on operating and pilot media Operation with oil lubrication not possible
- Type of mounting With through-hole With accessories
- Seals material NBR
- Material of jet nozzle Wrought aluminum alloy
- Width dimension 14 mm
- Mounting position Any
- Symbol 00992043
- Nominal operating pressure 6 bar
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Ambient temperature 0 °C ... 60 °C
- Pneumatic connection 3 Pneumatic muffler open
- Material of connecting thread Wrought aluminum alloy, anodized
- Female nozzle material POM
- Material of pneumatic fitting Brass Nickel-plated
- Type code VN
- Ejector characteristics Standard High negative pressure
- Operating pressure for max. suction rate 3 bar
- Max. suction rate with respect to atmosphere 21.8 l/min
- Temperature of medium 0 °C ... 60 °C
- Max. tightening torque 0.5 Nm
- Product weight 50 g
- Muffler material PE
- Muffler construction type Open
- Design T-shape
- Operating pressure for max. vacuum 3.5 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Noise level at nominal operating pressure 71 dB(A)
- Vacuum connection QS-6
- Note on materials Free of copper and PTFE RoHS-compliant
- Housing material PA-reinforced POM-reinforced
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
