532626 Festo Vacuum Generators
Part#:532626
Alt. Part#:VN-07-H-T3-PQ2-VQ2-RO1-M
Manufacturer:Festo
Category:Vacuum Generators
Product Lifecycle:Active
Product description

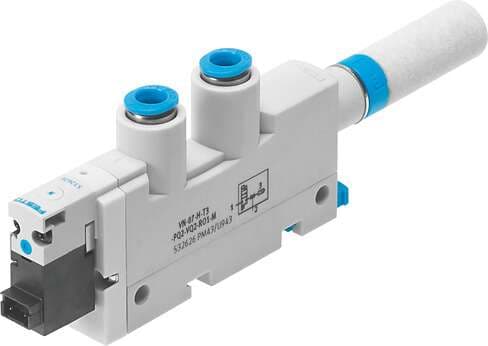

vacuum generator VN-07-H-T3-PQ2-VQ2-RO1-M With built-in solenoid valve. Standard, high vacuum, width 14 mm, T shape with plug connector and open silencer. Nominal size, Laval nozzle: 0,7 mm, Grid dimension: 14 mm, Design, silencer: open, Assembly position
Product Details
- Vacuum connection QS-6
- Seals material NBR
- Max. suction rate with respect to atmosphere 16.2 l/min
- Manual override Non-detenting
- Valve function 2/2
- Max. vacuum 92 %
- Duty cycle 100%
- Product weight 61 g
- Width dimension 14 mm
- Muffler construction type Open
- Design T-shape
- Operating pressure for max. vacuum 4.4 bar
- DC operating voltage range 21.6 V ... 26.4 V
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media Operation with oil lubrication not possible
- Pneumatic connection 1 QS-6
- Housing material PA-reinforced POM-reinforced
- Material of screws Steel
- Mounting position Any
- Symbol 00991492
- Nominal operating pressure 6 bar
- Temperature of medium 0 °C ... 50 °C
- Ambient temperature 0 °C ... 50 °C
- Type of mounting With through-hole With accessories
- Note on materials Free of copper and PTFE RoHS-compliant
- Material of jet nozzle Wrought aluminum alloy
- Type code VN
- Ejector characteristics Standard High negative pressure
- Operating pressure for max. suction rate 3 bar
- Electrical power consumption 1.2 W
- Noise level at nominal operating pressure 65 dB(A)
- Electrical connection Plug
- Material of connecting thread Wrought aluminum alloy, anodized
- Muffler material PE
- Material of pneumatic fitting Brass Nickel-plated
- Nominal width of Laval nozzle 0.7 mm
- Integrated function Shut off valve, electric Pneumatic muffler open
- Operating pressure 2 bar ... 8 bar
- Air supply time at nominal operating pressure 1.69 s
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Degree of protection IP40
- Pneumatic connection 3 Pneumatic muffler open
- Female nozzle material POM
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
