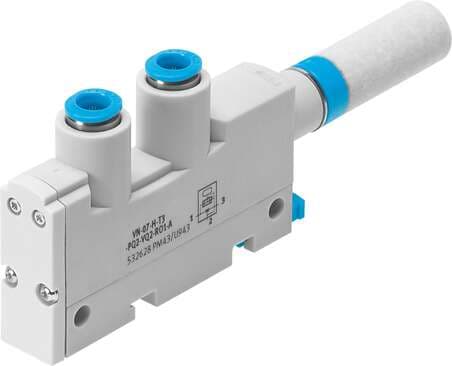

532620 Festo Vacuum Generators

Product Details

• Type code
  VN
• Mounting position
  Any
• Operating pressure
  1 bar ... 8 bar
• Nominal operating pressure
  6 bar
• Cleaning advice
  Soap suds
• Pneumatic connection 1
  QS-6
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Material of screws
  Steel
• Width dimension
  14 mm
• Ejector characteristics
  Standard High negative pressure
• Symbol
  00992043
• Max. vacuum
  92 %
• Temperature of medium
  0 °C ... 60 °C
• Max. tightening torque
  0.5 Nm
• Type of mounting
  With through-hole With accessories
• Housing material
  PA-reinforced POM-reinforced
• Muffler construction type
  Open
• Integrated function
  Ejector pulse valve, pneumatic Pneumatic muffler open
• Operating pressure for max. vacuum
  4.9 bar
• Information on operating and pilot media
  Operation with oil lubrication not possible
Noise level at nominal operating pressure
56 dB(A)
Product weight
49 g
Seals material
NBR
Material of jet nozzle
Wrought aluminum alloy
Operating pressure for max. suction rate
3 bar
Max. suction rate with respect to atmosphere
7.2 l/min
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
1 - Low corrosion stress
Vacuum connection
QS-6
Female nozzle material
POM
Nominal width of Laval nozzle
0.45 mm
Design
T-shape
Air supply time at nominal operating pressure
3.63 s
Ambient temperature
0 °C ... 60 °C
Pneumatic connection 3
Pneumatic muffler open
Material of connecting thread
Wrought aluminum alloy, anodized
Muffler material
PE
Material of pneumatic fitting
Brass Nickel-plated
