531622 Festo Pneumatic Fittings

531622 on Powermatic Associates
Festo

Part#:531622

Alt. Part#:KD2-CK-4

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

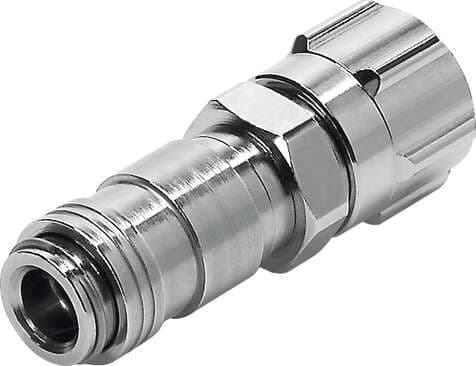

coupling socket KD2-CK-4 Self-closing Nominal size: 2,9 mm, Operating pressure complete temperature range: -0,95 - 12 bar, Standard nominal flow rate: 123 l/min, Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating

Product Details

  • Operating pressure for entire temperature range
    -0.95 bar ... 12 bar
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Note on materials
    RoHS-compliant
  • Standard nominal flow rate
    123 l/min
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Nominal width
    2.9 mm
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Product weight
    16 g
  • Pneumatic connection 1
    CK-4
  • Type code
    KD2
  • Ambient temperature
    -10 °C ... 80 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

531622 Related Documents

531622 DataSheet.pdf
