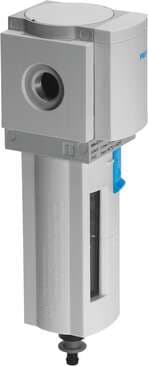

531557 Festo Compressed Air Preparation Units
Part#:531557
Alt. Part#:MS6N-LF-3/8-EUM
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description
filter MS6N-LF-3/8-EUM 40 µm filter, metal bowl, manual condensate drain, direction of flow: from left to right. Size: 6, Series: MS, Assembly position: Vertical +/- 5°, Grade of filtration: 40 µm, Condensate drain: manual rotary
Product Details
- Type code MS6N-LF
- Design Sinter filter with centrifugal separator
- Standard nominal flow rate 3800 l/min
- Product weight 820 g
- Material of bowl Wrought aluminum alloy
- Max. condensate volume 38 ml
- Operating medium Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
- Note on materials Free of copper and PTFE RoHS-compliant
- Housing material Die-cast aluminum
- Size 6
- Grade of filtration 40 µm
- Symbol 00991519
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:8:4]
- Temperature of medium -10 °C ... 60 °C
- Pneumatic connection 1 3/8 NPT
- Separating disc material POM
- Series MS
- Condensate drain Manually rotating
- Operating pressure 0 bar ... 20 bar
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Pneumatic connection 2 3/8 NPT
- Seals material NBR
- For use in the food industry See supplementary material information
- Mounting position Vertical +/- 5°
- Bowl guard Integrated as metal bowl guard
- Storage temperature -10 °C ... 60 °C
- Ambient temperature -10 °C ... 60 °C
- Type of mounting Optionally: With accessories
- Compressed air filter material PE
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
