531527 Festo Compressed Air Preparation Units
Part#:531527
Alt. Part#:MS6N-LF-3/8-CRM
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

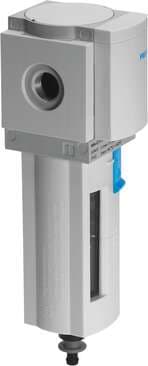

filter MS6N-LF-3/8-CRM 5 µm filter, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from left to right. Size: 6, Series: MS, Assembly position: Vertical +/- 5°, Grade of filtration: 5 µm, Condensate drain: manual rotary
Product Details
- Type code MS6N-LF
- Design Sinter filter with centrifugal separator
- Operating medium Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
- Size 6
- Max. condensate volume 38 ml
- Operating pressure 0 bar ... 20 bar
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [6:8:4]
- Pneumatic connection 1 3/8 NPT
- Material of bowl PC
- Condensate drain Manually rotating
- Symbol 00991519
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Product weight 600 g
- Pneumatic connection 2 3/8 NPT
- For use in the food industry See supplementary material information
- Mounting position Vertical +/- 5°
- Bowl guard Plastic bowl guard
- Storage temperature -10 °C ... 60 °C
- Ambient temperature -10 °C ... 60 °C
- Seals material NBR
- Housing material Die-cast aluminum
- Series MS
- Grade of filtration 5 µm
- Standard nominal flow rate 3000 l/min
- Type of mounting Optionally: With accessories
- Note on materials Free of copper and PTFE RoHS-compliant
- Separating disc material POM
- Temperature of medium -10 °C ... 60 °C
- Compressed air filter material PE
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
