531532 Festo Compressed Air Preparation Units
Part#:531532
Alt. Part#:MS6N-LF-1/2-CRV
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

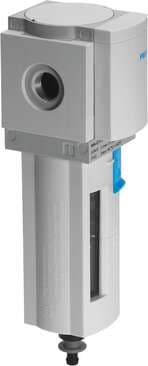

filter MS6N-LF-1/2-CRV 5 µm filter, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size: 6, Series: MS, Assembly position: Vertical +/- 5°, Grade of filtration: 5 µm, Condensate drain: fully auto
Product Details
- Mounting position Vertical +/- 5°
- Max. condensate volume 38 ml
- Symbol 00991520
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [6:8:4]
- Type of mounting Optionally: With accessories
- Seals material NBR
- Material of bowl PC
- Type code MS6N-LF
- Grade of filtration 5 µm
- Condensate drain Fully automatic
- Standard nominal flow rate 3200 l/min
- Storage temperature -10 °C ... 60 °C
- Pneumatic connection 1 1/2 NPT
- Housing material Die-cast aluminum
- Size 6
- Series MS
- Design Sinter filter with centrifugal separator
- Product weight 600 g
- Note on materials Free of copper and PTFE RoHS-compliant
- Operating pressure 2 bar ... 12 bar
- Temperature of medium 5 °C ... 60 °C
- Ambient temperature 5 °C ... 60 °C
- Separating disc material POM
- For use in the food industry See supplementary material information
- Bowl guard Plastic bowl guard
- Operating medium Compressed air as per ISO 8573-1:2010 [7:9:-] Inert gas
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Pneumatic connection 2 1/2 NPT
- Compressed air filter material PE
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
