531551 Festo Compressed Air Preparation Units

531551 on Powermatic Associates
Festo

Part#:531551

Alt. Part#:MS6N-LF-3/8-EUV

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

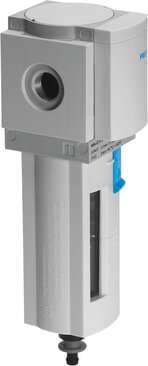

filter MS6N-LF-3/8-EUV 40 µm filter, metal bowl guard, fully automatic condensate drain, flow direction from left to right. Size: 6, Series: MS, Assembly position: Vertical +/- 5°, Grade of filtration: 40 µm, Condensate drain: fully automatic

Product Details

  • Type code
    MS6N-LF
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:9:-] Inert gas
  • Product weight
    820 g
  • For use in the food industry
    See supplementary material information
  • Design
    Sinter filter with centrifugal separator
  • Standard nominal flow rate
    3800 l/min
  • Temperature of medium
    5 °C ... 60 °C
  • Type of mounting
    Optionally: With accessories
  • Housing material
    Die-cast aluminum
  • Size
    6
  • Condensate drain
    Fully automatic
  • Symbol
    00991520
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:8:4]
  • Pneumatic connection 1
    3/8 NPT
  • Material of bowl
    Wrought aluminum alloy
  • Mounting position
    Vertical +/- 5°
  • Max. condensate volume
    38 ml
  • Operating pressure
    2 bar ... 12 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection 2
    3/8 NPT
  • Separating disc material
    POM
  • Series
    MS
  • Grade of filtration
    40 µm
  • Bowl guard
    Integrated as metal bowl guard
  • Storage temperature
    -10 °C ... 60 °C
  • Ambient temperature
    5 °C ... 60 °C
  • Seals material
    NBR
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Compressed air filter material
    PE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
