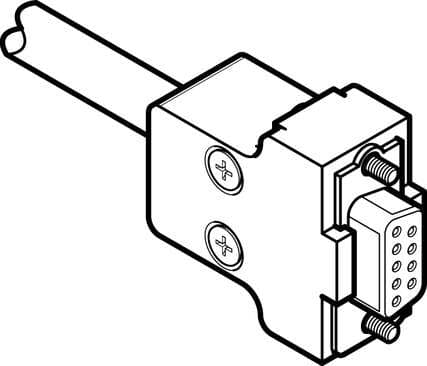

531184 Festo Cable Assemblies

Product Details

• Based on norm
  DIN 41652
• Electrical connection 1, connection technology
  Sub-D
• Electrical connection for input 1, connection pattern
  00995638
• Current rating at 40°C
  2.8 A
• Bending radius, flexible cable installation
  ≥ 114 mm
• Note on degree of protection
  In mounted state
• Ambient temperature
  -25 °C ... 70 °C
• Material of cable sheath
  PVC
• Housing colour
  Gray
• Type code
  KMP6
• Product weight
  248 g
• Electrical connection 1, cable outlet
  Straight
• Electrical connection 1, type of mounting
  2x screw, 4-40 UNC
• Electrical connection 2, occupied pins/wires
  9
• Surge resistance
  1 kV
• Connector cable test conditions
  Test conditions on request
• Cable diameter tolerance
  ± 0.25 mm
• Ambient temperature with flexible cable installation
  -5 °C ... 70 °C
• Color cable sheath
  Gray
• Material of pin contacts
  Copper alloy, gold-plated
Cable designation
Without label holder
Electrical connection 1, design
Rectangular
Electrical connection 1, number of pins/wires
9
Electrical connection 2, connection type
Cable
Electrical connection 2, connection technology
Open end
Cable length
2.5 m
Cable design
8 x 0.34 mm² + 1 x 0.5 mm²
Wire ends
Cut off bluntly
CE marking (see declaration of conformity)
As per EU RoHS directive
Housing material
PBT-reinforced
Contact durability
50
Electrical connection 1, connection type
Socket
Electrical connection 2, function
Control side
DC operating voltage range
0 V ... 30 V
Cable characteristic
Standard
Bending radius, fixed cable installation
≥ 76 mm
Degree of protection
IP40
Storage temperature
-25 °C ... 75 °C
Contamination level
2
Electrical connection 1, function
Field device end
Electrical connection 1, occupied pins/wires
9
Electrical connection 2, number of pins/wires
9
Nominal operating voltage DC
24 V
Cable diameter
7.6 mm
Nominal conductor cross section
0.34 mm² 0.5 mm²
Note on materials
RoHS-compliant
Material of screw-type lock
Brass, nickel-plated
