531121 Festo Compressed Air Preparation Units

531121 on Powermatic Associates
Festo

Part#:531121

Alt. Part#:MSB4-1/4-FRC7:J3M1

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

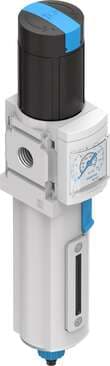

service unit combination MSB4-1/4-FRC7:J3M1 Filter-regulator-lubricator combination, 12 bar maximum output pressure, 5 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, manual condensate drain, direction of flo

Product Details

  • Size
    4
  • Mounting position
    Vertical +/- 5°
  • Series
    MS
  • Grade of filtration
    5 µm
  • Pressure regulation range
    0.5 bar ... 12 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Temperature of medium
    -10 °C ... 60 °C
  • Product weight
    500 g
  • Design
    Filter regulator with pressure gauge Proportional standard oil mist lubricator
  • Controller function
    Outlet pressure constant With return flow function
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [6:4:-]
  • Type code
    MSB4
  • Condensate drain
    Manually rotating
  • Pressure gauge
    with pressure gauge
  • Storage temperature
    -10 °C ... 60 °C
  • Pneumatic connection 2
    G¼
  • Pneumatic connection 1
    G1/4
  • Actuator lock
    Rotary knob with integrated lock
  • Bowl guard
    Plastic bowl guard
  • Operating pressure
    1.5 bar ... 14 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas
  • Ambient temperature
    -10 °C ... 60 °C
  • Symbol
    00991761
  • Standard nominal flow rate
    850 l/min
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Housing material
    Die-cast aluminum
  • Type of mounting
    With accessories
  • Material of bowl
    PC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

531121 Related Documents

531121 DataSheet.pdf
