530085 Festo Couplings

530085 on Powermatic Associates
Festo

Part#:530085

Alt. Part#:EAMC-B-15-22-5-5

Manufacturer:Festo

Category:Couplings

Product Lifecycle:Active

Product description

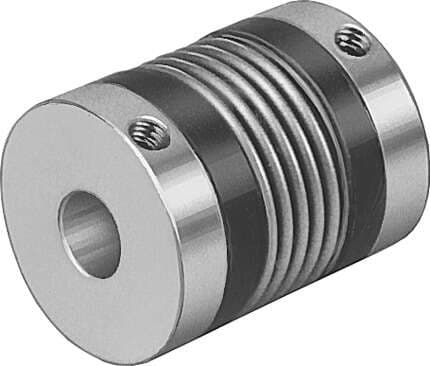

coupling EAMC-B-15-22-5-5 For electromechanical drive with stepper motor Holder diameter 1: 5 mm, Holder diameter 2: 5 mm, Size: 15, Nominal length: 22 mm, Assembly position: Any

Product Details

  • Nominal length
    22 mm
  • Mass moment of inertia
    0.13 kgmm²
  • Type code
    EAMC
  • Ambient temperature
    -25 °C ... 60 °C
  • Note on materials
    RoHS-compliant
  • Diameter of holder 2
    5 mm
  • Max. rotational speed
    12000 1/min
  • Relative air humidity
    0 - 95 %
  • Diameter of holder 1
    5 mm
  • Mounting position
    Any
  • Transferable torque
    1 Nm
  • Size
    15
  • Storage temperature
    -25 °C ... 60 °C
  • Product weight
    6 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
