526172 Festo Electrical Peripheral Devices

Name: 526172
Brand: Festo

Part#:526172

Manufacturer:Festo

Alt. Part#:CPX-FB11

Product Lifecycle:Active

Get a quick Quote!

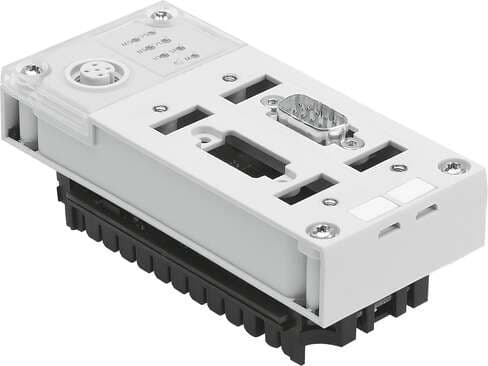

bus node CPX-FB11 for modular electrical terminal CPX. Dimensions W x L x H: (* (including interlinking block), * 50 mm x 107 mm x 50 mm), Fieldbus interface: (* Sub-D socket, 9-pin, * Sub-D plug, for self-assembly, * MicroStyle: 2x M12x1, 5-pin, * OpenSt

About the manufacturer: Festo is one of the manufacturers that offers Electrical Peripheral Devices that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 526172 Festo price in the box on the right side or send a quick quote.

Product Details

Product weight
120 g
Dimensions W x L x H
(incl. interlinking block) 50 mm x 107 mm x 50 mm
Additional functions
Acyclic data access via "Explicit Message" Additional diagnostic interface for operator units
Intrinsic current consumption at nominal operating voltage
Typ. 200 mA
Protocol
DeviceNet
LED display (product-specific)
M: Modify, parameterization SF: system fault
DC operating voltage range
18 V ... 30 V
Corrosion resistance class (CRC)
1 - Low corrosion stress
LED display (bus-specific)
IO: I/O status NS: network status
Fieldbus interface
Sub-D socket, 9-pin Open style: terminal strip, 5-pin
Device-specific diagnostics
Channel-oriented and module-oriented diagnostics Diagnostic memory
Baud rate
125, 250, 500 kbit/s
Degree of protection
IP65 IP67
Max. address capacity outputs
64 byte
Housing material
PA-reinforced PC
Communication types
Change of state Strobbed I/O
Configuration support
EDS file
Control elements
DIL switch
Storage temperature
-20 °C ... 70 °C
Type code
CPX

Parameterization

Diagnostic behavior System parameter

Nominal operating voltage DC

24 V

Ambient temperature

-5 °C ... 50 °C

Max. address capacity inputs

64 byte

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
