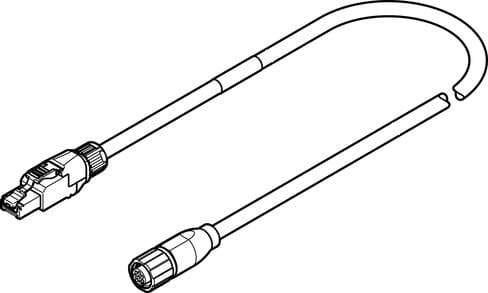

5212312 Festo Cable Assemblies

Product Details

• Product weight
  200 g
• Electrical connection 1, connection technology
  M12x1 A-coded as per EN 61076-2-101
• Electrical connection 2, function
  Control side
• DC operating voltage range
  0 V ... 30 V
• Cable length
  2.5 m
• Cable design
  1 x 4 x 0.15 mm² + 4 x 1 x 0.34 mm² Shielded
• Ambient temperature
  -40 °C ... 80 °C
• Color cable sheath
  Black
• Electrical connection 1, occupied pins/wires
  8
• Electrical connection 2, occupied pins/wires
  8
• Nominal operating voltage DC
  24 V
• Bending radius, flexible cable installation
  ≥ 48 mm
• Nominal conductor cross section
  0.15 mm²
• CE marking (see declaration of conformity)
  As per EU RoHS directive
• Type code
  NEBM
• Electrical connection 1, design
  Round
• Electrical connection for input 1, connection pattern
  00992265
• Electrical connection 2, cable outlet
  Straight
• Electrical connection 2, connection pattern
  00995653
• Cable characteristic
  Suitable for energy chains
Degree of protection
IP65
Corrosion resistance class (CRC)
0 - No corrosion stress
Electrical connection 1, function
Field device end
Electrical connection 1, cable outlet
Straight
Electrical connection 1, connection type
Socket
Electrical connection 2, connection type
Plug
Electrical connection 2, number of pins/wires
8
Operating voltage range AC
0 V ... 30 V
Note on degree of protection
IP30 for Sub-D plug In mounted state
Ambient temperature with flexible cable installation
-5 °C ... 80 °C
Cable designation
Without label holder
Electrical connection 1, number of pins/wires
8
Electrical connection 2, design
Rectangular
Electrical connection 2, connection technology
RJ45
Nominal operating voltage AC
24 V
Cable diameter
5.8 mm
Note on materials
RoHS-compliant
Material of cable sheath
TPE-U(PUR)
