5200227 Festo Couplings

5200227 on Powermatic Associates
Festo

Part#:5200227

Alt. Part#:EAMD-42-40-10-16X25

Manufacturer:Festo

Category:Couplings

Product Lifecycle:Active

Product description

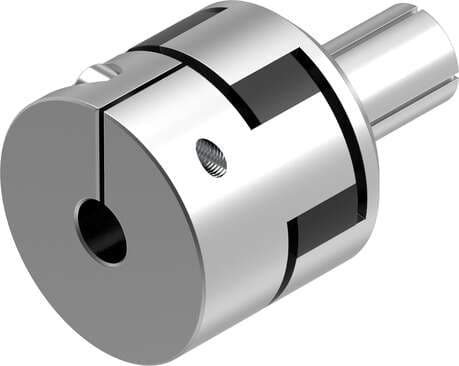

coupling EAMD-42-40-10-16X25 Holder diameter 1: 10 mm, Holder diameter 2: 16 mm, Size: 42, Nominal length: 40 mm, Assembly position: Any

Product Details

  • Diameter of holder 1
    10 mm
  • Diameter of holder 2
    16 mm
  • Size
    42
  • Nominal length
    40 mm
  • Mounting position
    Any
  • Type code
    EAMD
  • Max. rotational speed
    6000 1/min
  • Relative air humidity
    0 - 95 %
  • Storage temperature
    -25 °C ... 60 °C
  • Ambient temperature
    -25 °C ... 60 °C
  • Mass moment of inertia
    39 kgmm²
  • Transferable torque
    17 Nm
  • Note on materials
    RoHS-compliant
  • Product weight
    199 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
