5030235 Festo Couplings

5030235 on Powermatic Associates
Festo

Part#:5030235

Alt. Part#:EAMD-30-22-16-10X12

Manufacturer:Festo

Category:Couplings

Product Lifecycle:Active

Product description

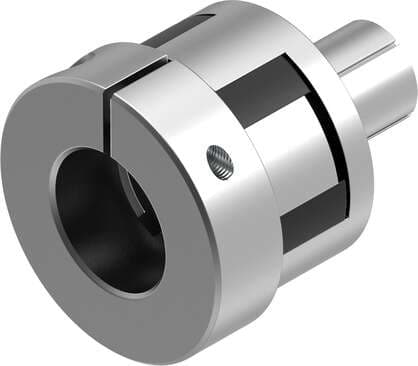

coupling EAMD-30-22-16-10X12 Holder diameter 1: 16 mm, Holder diameter 2: 10 mm, Size: 30, Nominal length: 22 mm, Assembly position: Any

Product Details

  • Diameter of holder 1
    16 mm
  • Diameter of holder 2
    10 mm
  • Type code
    EAMD
  • Relative air humidity
    0 - 95 %
  • Mass moment of inertia
    4 kgmm²
  • Nominal length
    22 mm
  • Storage temperature
    -25 °C ... 60 °C
  • Size
    30
  • Max. rotational speed
    8000 1/min
  • Note on materials
    RoHS-compliant
  • Ambient temperature
    -25 °C ... 60 °C
  • Product weight
    44.8 g
  • Mounting position
    Any
  • Transferable torque
    9 Nm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

5030235 Related Documents

5030235 DataSheet.pdf

Manufacturer warranty

5030235 Festo
