4414862 Festo Mechanical & Manual Valves

4414862 on Powermatic Associates
Festo

Part#:4414862

Alt. Part#:VHEF-HST-B32-N14

Manufacturer:Festo

Category:Mechanical & Manual Valves

Product Lifecycle:Active

Product description

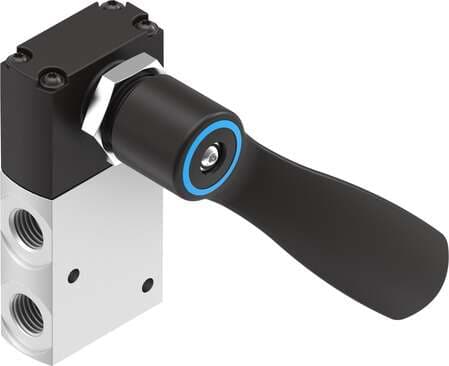

hand lever valve VHEF-HST-B32-N14 Valve function: 3/2 bistable, Type of actuation: manual, Width: 20 mm, Standard nominal flow rate: 870 l/min, Operating pressure MPa: -0,095 - 1 MPa

Product Details

  • Lap
    Zero overlap
  • Max. force on actuator
    200 N
  • Width
    20 mm
  • Application note
    Operate by hand only
  • Sealing principle
    Soft
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Actuating torque
    0.7 Nm
  • Pneumatic connection 3
    1/4 NPT
  • Valve function
    3/2, bistable
  • Pneumatic working port
    1/4 NPT
  • Mounting position
    Any
  • Type of control
    Direct
  • Max. switching frequency
    0.5 Hz
  • Product weight
    230 g
  • Note on materials
    RoHS-compliant
  • Lever material
    PA-reinforced
  • Max. transverse load on actuator
    200 N
  • Standard nominal flow rate
    870 l/min
  • Type code
    VHEF
  • Symbol
    00995892
  • Temperature of medium
    -10 °C ... 60 °C
  • Pneumatic connection 2
    1/4 NPT
  • Cover material
    PA-reinforced
  • Actuation type
    Manual
  • Nominal width
    6 mm
  • Exhaust air function
    With flow control option
  • Flow direction
    Reversible
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Ambient temperature
    -10 °C ... 60 °C
  • Type of mounting
    Optionally: With through-hole
  • Seals material
    NBR
  • Operating pressure
    -0.95 bar ... 10 bar
  • Design
    Plate seat
  • Manual override
    Detenting
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Pneumatic connection 1
    1/4 NPT
  • Housing material
    Wrought aluminum alloy, anodized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
