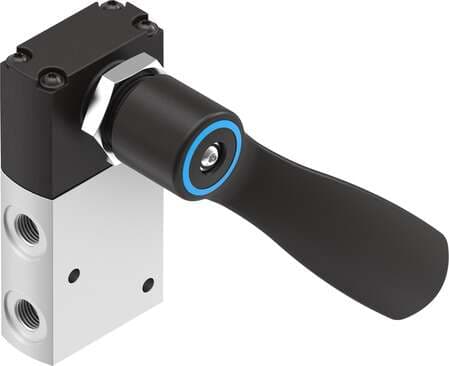

4414861 Festo Mechanical & Manual Valves
Part#:4414861
Alt. Part#:VHEF-HST-B32-N18
Manufacturer:Festo
Category:Mechanical & Manual Valves
Product Lifecycle:Active
Product description
hand lever valve VHEF-HST-B32-N18 Valve function: 3/2 bistable, Type of actuation: manual, Width: 20 mm, Standard nominal flow rate: 750 l/min, Operating pressure MPa: -0,095 - 1 MPa
Product Details
- Width 20 mm
- Nominal width 5.6 mm
- Manual override Detenting
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Ambient temperature -10 °C ... 60 °C
- Pneumatic connection 2 1/8 NPT
- Pneumatic connection 1 1/8 NPT
- Max. force on actuator 200 N
- Actuation type Manual
- Standard nominal flow rate 750 l/min
- Application note Operate by hand only
- Type of control Direct
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Type of mounting Optionally: With through-hole
- Seals material NBR
- Cover material PA-reinforced
- Pneumatic working port 1/8 NPT
- Exhaust air function With flow control option
- Max. switching frequency 0.5 Hz
- Temperature of medium -10 °C ... 60 °C
- Product weight 236 g
- Note on materials RoHS-compliant
- Lever material PA-reinforced
- Valve function 3/2, bistable
- Max. transverse load on actuator 200 N
- Type code VHEF
- Mounting position Any
- Flow direction Reversible
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Pneumatic connection 3 1/8 NPT
- Lap Zero overlap
- Operating pressure -0.95 bar ... 10 bar
- Design Plate seat
- Sealing principle Soft
- Symbol 00995892
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Actuating torque 0.7 Nm
- Housing material Wrought aluminum alloy, anodized
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
