4414856 Festo Mechanical & Manual Valves

4414856 on Powermatic Associates
Festo

Part#:4414856

Alt. Part#:VHEF-HS-M52-M-N14

Manufacturer:Festo

Category:Mechanical & Manual Valves

Product Lifecycle:Active

Product description

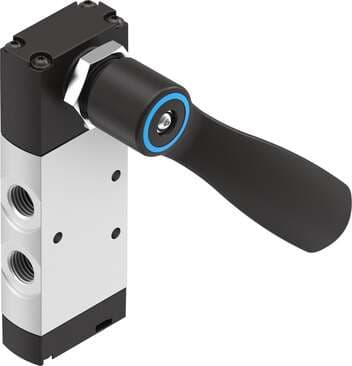

hand lever valve VHEF-HS-M52-M-N14 Valve function: 5/2 monostable, Type of actuation: manual, Width: 20 mm, Standard nominal flow rate: 1200 l/min, Operating pressure MPa: -0,095 - 1 MPa

Product Details

  • Cover material
    PA-reinforced
  • Operating pressure
    -0.95 bar ... 10 bar
  • Reset method
    Mechanical spring
  • Type code
    VHEF
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Pneumatic connection 2
    1/4 NPT
  • Note on materials
    RoHS-compliant
  • Lap
    Overlap
  • Valve function
    5/2, monostable
  • Max. transverse load on actuator
    200 N
  • Design
    Piston gate valve
  • Sealing principle
    Soft
  • Flow direction
    Reversible
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Product weight
    298 g
  • Type of mounting
    Optionally: With through-hole
  • Max. force on actuator
    200 N
  • Width
    20 mm
  • Exhaust air function
    With flow control option
  • Type of control
    Direct
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Actuating torque
    0.6 Nm
  • Pneumatic connection 3
    1/4 NPT
  • Housing material
    Wrought aluminum alloy, anodized
  • Standard nominal flow rate
    1200 l/min
  • Application note
    Operate by hand only
  • Mounting position
    Any
  • Max. switching frequency
    0.5 Hz
  • Temperature of medium
    -10 °C ... 60 °C
  • Pneumatic connection 4
    1/4 NPT
  • Seals material
    NBR
  • Lever material
    PA-reinforced
  • Actuation type
    Manual
  • Pneumatic working port
    1/4 NPT
  • Nominal width
    7 mm
  • Symbol
    00995882
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 1
    1/4 NPT
  • Pneumatic connection 5
    1/4 NPT

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
