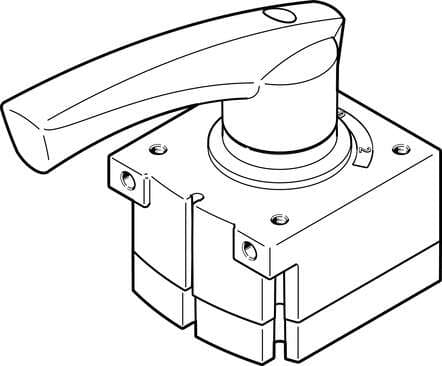

3192088 Festo Mechanical & Manual Valves

Product Details

• Standard nominal flow rate
  3800 l/min
• Operating pressure
  0 bar ... 10 bar
• Nominal width
  12 mm
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Ambient temperature
  -20 °C ... 80 °C
• Product weight
  860 g
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Exhaust air function
  With flow control option
• Type of control
  Direct
• Underlap
  yes
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Type of mounting
  Optionally: With through-hole
• Pneumatic connection 4
  NPT1/2-14
• Width
  80 mm
• Pneumatic working port
  NPT1/2-14
• Sealing principle
  Hard
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Temperature of medium
  -20 °C ... 80 °C
• Pneumatic connection 1
  NPT1/2-14
• Housing material
  Die-cast aluminum
Valve function
4/3, exhausted
Design
Rotary gate valve
Application note
Operate by hand only
Flow direction
Non-reversible
Symbol
00995941
Actuating torque
5 Nm
Pneumatic connection 3
NPT1/2-14
Seals material
NBR
Actuation type
Manual
Information on operating pressure
Vacuum operation at connection 3 only In dual pressure mode, the pressure at connection 1 must be higher than at connection 3.
Type code
VHER
Switching position indication
with accessories
Pneumatic connection 2
NPT1/2-14
Lever material
Die-cast aluminum

Related documents 3192088 Specs
