30547 Festo Pneumatic Valves Accessories

30547 on Powermatic Associates
Festo

Part#:30547

Alt. Part#:PRS-1/8-7-BB

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Product description

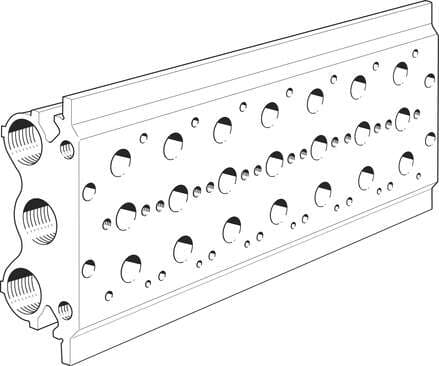

manifold block PRS-1/8-7-BB Max. number of valve positions: 7, Product weight: 1750 g, Mounting type: with through hole, Pilot exhaust port 82: G1/8, Pilot exhaust port 84: G1/8

Product Details

  • Type code
    PRS
  • Pilot exhaust air port 82
    G1/8
  • Note on materials
    RoHS-compliant
  • Type of mounting
    With through-hole
  • Pilot exhaust air port 84
    G1/8
  • Material of sub-base
    Aluminum
  • Max. no. of valve positions
    7
  • Pneumatic connection 5
    G3/8
  • Product weight
    1750 g
  • Pneumatic connection 3
    G3/8
  • Pneumatic connection 1
    G3/8

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
