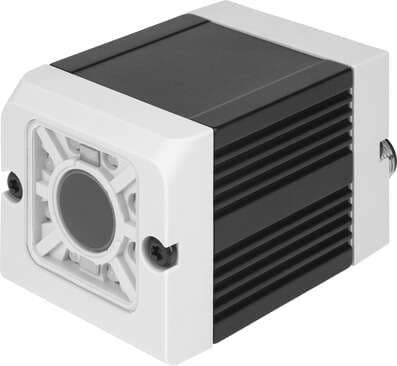

2942265 Festo Electronic Components

Product Details

• Type code
  SBSI
• Wavelength
  880 nm
• KC characters
  KC EMC
• Vision sensor version
  Object sensor
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Working distance
  6 mm - infinite
• Focal length
  6 mm
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Focus setting
  With adjusting screw
• Field of view
  min. 5 x 4 mm
• Frame rate (full image)
  50 fps
• Typical cycle time
  Position tracking: 30 ms BLOB: 30 ms
• Electrical connection
  12-pin Plug
• Switching level
  Signal 0: <= 3 V Signal 1: >= UB - 1 V
• Nominal operating voltage DC
  24 V
• Current consumption with load-free outputs
  200 mA
• Cover material
  ABS-reinforced
• Lens attachment
  Integrated optics
• Lighting type
  Integrated
• Information on Ethernet, connection technology
  Socket 4-pin
Ethernet, data transmission speed
100 Mbit/s
Number of digital outputs
2
Max. current consumption
550 mA
Product weight
160 g
Vibration resistance
as per EN 60068-2-6
Type of light
Infrared LED
Max. no. of inspection programs/jobs
8
Ethernet, supported protocols
Ethernet/IP TCP/IP
Switching output
PNP/NPN switchable
Max. output current
50 mA
Dimensions W x L x H
45 mm x 45 mm x 76.7 mm
Note on materials
RoHS-compliant
Sensor type
Monochrome
Max. number of test criteria/detectors
32
Number of digital inputs
2
Switching input
PNP/NPN switchable
Permissible voltage fluctuations
-25 %/+10 %
Storage temperature
-20 °C ... 60 °C
Housing material
Wrought aluminum alloy, anodized
Sensor resolution
736 x 480 pixels (WideVGA)
Function of detectors/characteristics
Position tracking via contour Gray value threshold
Number of selectable digital inputs/outputs
2
Short-circuit protection
For all electrical connections
Ambient temperature
0 °C ... 50 °C
Degree of protection
IP67
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
