2781450 Festo Axial Kits

2781450 on Powermatic Associates
Festo

Part#:2781450

Manufacturer:Festo

Alt. Part#:EAMM-U-70-D32-60H-96-S1

Product Lifecycle:Active

Get a quick Quote!

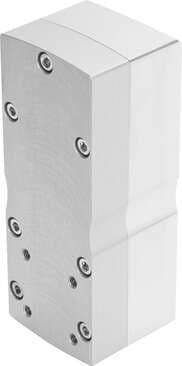

parallel kit EAMM-U-70-D32-60H-96-S1 Suitable for electric drives. Size: 70, Assembly position: Any, Gear unit ratio: 1:1, Max. speed: 5000 1/min, Storage temperature: -25 - 60 °C

About the manufacturer: Festo is one of the manufacturers that offers Axial Kits that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 2781450 Festo price in the box on the right side or send a quick quote.

Product Details

  • Type code
    EAMM-U
  • Mounting position
    Any
  • Max. rotational speed
    5000 1/min
  • Transferable torque
    7 Nm
  • Storage temperature
    -25 °C ... 60 °C
  • Ambient temperature
    -10 °C ... 60 °C
  • No-load driving torque
    0.18 Nm
  • Size
    70
  • Degree of protection
    IP65
  • Note on materials
    RoHS-compliant
  • Gear ratio
    1:1
  • Mass moment of inertia
    118 kgmm²
  • Relative air humidity
    0 - 95 %
  • Product weight
    1780 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 2781450 Specs

2781450 2781450 DataSheet.pdf
