2316 Festo Pneumatic Mufflers

2316 on Powermatic Associates
Festo

Part#:2316

Alt. Part#:U-1/4

Manufacturer:Festo

Category:Pneumatic Mufflers

Product Lifecycle:Active

Product description

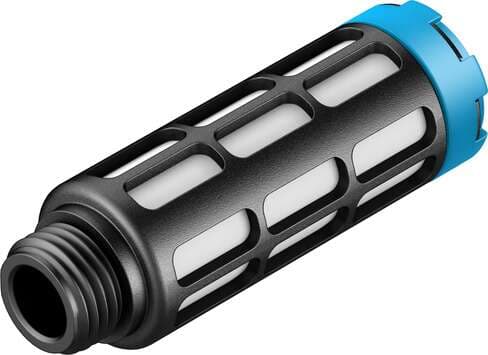

silencer U-1/4 For reducing noise and avoiding contamination at the exhaust ports of pneumatic components. Assembly position: Any, Operating pressure: 0 - 10 bar, Flow rate to atmosphere: 3300 l/min, Operating medium: Compressed air in accordance with ISO

Product Details

  • Mounting position
    Any
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Noise level
    76 dB(A)
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Operating pressure
    0 bar ... 10 bar
  • Pneumatic connection
    G1/4
  • Type code
    U
  • Ambient temperature
    -10 °C ... 70 °C
  • Symbol
    00991473
  • Flow rate with respect to atmosphere
    3300 l/min
  • Product weight
    7.7 g
  • Cushioning insert material
    PE
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

2316 Related Documents

2316 DataSheet.pdf
