2265133 Festo Cable Assemblies
Part#:2265133
Manufacturer:Festo
Category:Cable Assemblies
Alt. Part#:NEBV-C-S1WA25HS-K-10-N-LE25-S10
Product Lifecycle:Active
Get a quick Quote!

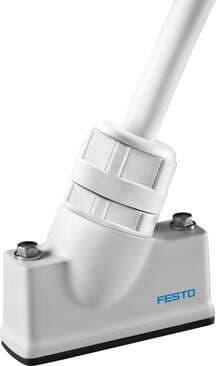

connecting cable NEBV-C-S1WA25HS-K-10-N-LE25-S10 Based on the standard: DIN 47100, Cable identification: Without inscription label holder, Connection frequency: 50, Product weight: 1660 g, Electrical connection 1, function: Field device side
About the manufacturer: Festo is one of the manufacturers that offers Cable Assemblies that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 2265133 Festo price in the box on the right side or send a quick quote.
Product Details
- Type code NEBV
- Contact durability 50
- Electrical connection 1, cable outlet Angled
- Cable designation Without label holder
- Electrical connection 1, design Rectangular
- Electrical connection 1, occupied pins/wires 25
- Electrical connection 2, connection type Cable
- Current rating at 40°C 2.6 A
- Cable characteristic Standard
- Ambient temperature -5 °C ... 60 °C
- Contamination level 3
- Material of cable sheath PVC
- Insulating sheath material PVC
- Electrical connection 1, connection type Socket
- Electrical connection for input 1, connection pattern 00995642
- Cable length 10 m
- Cable diameter 10.2 mm
- Degree of protection IP65 IP69K
- Note on degree of protection In mounted state
- Note on materials RoHS-compliant
- Material of screws Stainless steel
- Based on norm DIN 47100
- Electrical connection 1, function Field device end
- Electrical connection 1, number of pins/wires 25
- Cable diameter tolerance ± 0.25 mm
- Ambient temperature with flexible cable installation -5 °C ... 60 °C
- Corrosion resistance class (CRC) 3 - High corrosion stress
- Color cable sheath Gray
- Product weight 1660 g
- Electrical connection 1, connection technology Sub-D
- Electrical connection 2, function Control side
- Electrical connection 2, number of pins/wires 25
- Protective earth connection Not available
- Bending radius, flexible cable installation ≥ 122 mm
- Nominal conductor cross section 0.34 mm²
- Storage temperature -20 °C ... 40 °C
- Housing colour Gray
- Material of pin contacts Bronze, gold-plated
- Electrical connection 1, type of mounting 2x screw, 4-40 UNC With seal
- Electrical connection 2, connection technology Open end
- DC operating voltage range 0 V ... 30 V
- Bending radius, fixed cable installation ≥ 41 mm
- Cable design 25 x 0.34 mm²
- Special features Easy to clean
- Housing material PA-reinforced
- Seals material EPDM
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents 2265133 Specs
