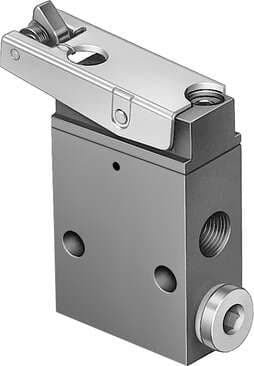

2186 Festo Pneumatic Components

Product Details

• Actuation type
  Mechanical
• Type code
  LS
• Symbol
  00991104
• Note on forced dynamization
  Switching frequency min. 1/year
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Pneumatic connection 1
  G1/8
• Seals material
  NBR
• Pneumatic working port
  G1/8
• Nominal width
  3.5 mm
• Mounting position
  Any
• Flow direction
  Non-reversible
• Temperature of medium
  -10 °C ... 60 °C
• Product weight
  110 g
• Note on materials
  RoHS-compliant
• Reset method
  Mechanical spring
• Exhaust air function
  With flow control option
• Pilot air supply port
  Internal
• Actuating force
  1.67 N
• Housing material
  Aluminum Anodized
• Valve function
  3/2, closed, monostable
Operating pressure
3.5 bar ... 8 bar
Design
Plate seat
Sealing principle
Soft
Operating medium
Compressed air as per ISO 8573-1:2010 [-:-:-]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Pneumatic connection 2
G1/8
Standard nominal flow rate
146 l/min
Type of control
Pilot-controlled
Pilot medium
Compressed air as per ISO 8573-1:2010 [-:-:-]
Ambient temperature
-10 °C ... 60 °C
Type of mounting
With through-hole
Pneumatic connection 3
G1/8
