2095359 Festo Pneumatic Components

2095359 on Powermatic Associates
Festo

Part#:2095359

Alt. Part#:HPVS-10-10-A

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

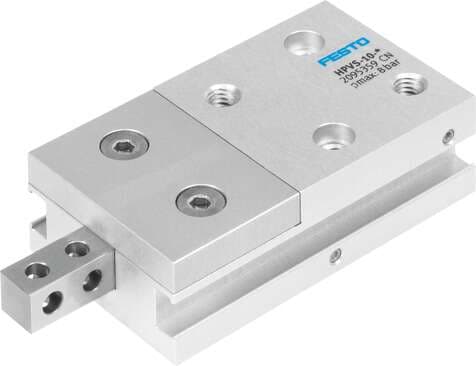

feed separator HPVS-10-10-A Stroke: 10 mm, Piston diameter: 10 mm, Max. replacement accuracy: 0,3 mm, Max. stem backlash Sx: 0,05 mm, Max. stem backlash Sz: 0,03 mm

Product Details

  • Cushioning
    No cushioning
  • Position sensing
    For proximity sensor
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Max. force on finger Fz static
    75 N
  • Max. static moment at finger
    3 Nm
  • Theoretical force at 6 bar, retracting
    35 N
  • Stroke
    10 mm
  • Max. tappet play Sx
    0.05 mm
  • Type code
    HPVS
  • Symbol
    00991216
  • Protection against torsion/guide
    Square guide
  • Max. static moment Mr at finger
    3 Nm
  • Theoretical force at 6 bar, advancing
    45 N
  • Alternative connections
    M3
  • Max. gripper jaw angular backlash
    0.12 deg
  • External finger mounting
    Through-hole
  • Mounting position
    Any
  • Operating pressure
    3 bar ... 8 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Max. mass per external gripper finger
    56 g
  • Pneumatic connection
    M5
  • Piston diameter
    10 mm
  • Max. tappet play Sz
    0.03 mm
  • Max. gripper jaw angular backlash az
    0.262 deg
  • Design
    Piston rod Anti-twist feature
  • Retracting time
    30 ms
  • Ambient temperature
    5 °C ... 60 °C
  • Type of mounting
    Optionally: Via through-hole and centering sleeve
  • Max. interchangeability
    0.3 mm
  • Max. gripper jaw angular backlash ay
    0.2 deg
  • Mode of operation
    Double-acting
  • Advancing time
    16 ms
  • Repetition accuracy
    0.05 mm
  • Max. static moment Mx at finger
    3 Nm
  • Product weight
    90 g
  • Note on materials
    Free of copper and PTFE RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

2095359 Related Documents

2095359 DataSheet.pdf
